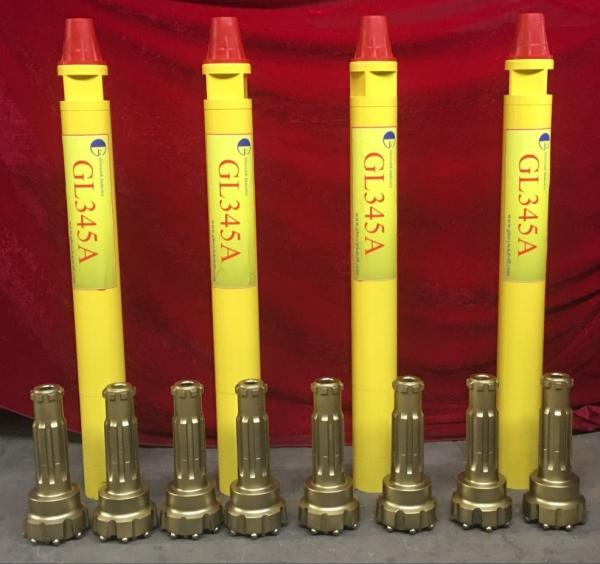

DTH Drilling Hammer For Mining DHD 340 Shank High Pressure Down The
Hole DTH Drill Hammers
Description
High-pressure Down-The-Hole (DTH) hammer is a specialized tool used
in drilling operations, specifically in rock drilling. It is
designed to deliver high-impact energy to a drill bit, enabling
efficient penetration of hard rock formations.
Our DTH hammer and bits are compatible with CIR, DHD,
QL,SD,Mission, etc. series of Atlas and Sandvik etc.
High-pressure DTH bits are engineered to withstand the intense
impact energy delivered by high-pressure DTH hammers. They are
designed to efficiently penetrate hard rock formations, providing
high drilling speeds and improved productivity in applications such
as mining, quarrying, and construction.
Technical Parameter
| Item | GL345A |
| Drilling Dia. (ф/mm) | 105-130 |
| Hammer Length(mm) | 1034 |
| Outside Dia.(ф/mm) | 98 |
| Weight(kg) | 39 |
| Working Pressure(Mpa) | 0.8-2.1 |
| Air Consumption (M3/Min.) | 3.5-15 |
| Torque(N.M) | 335 |
| Impact Frequency (Times/Min.) | ≥800 |
| Connection 1 | API 2-3/8 |
| Connection 2 | Ф64-8 |
Applications
DTH hammers are widely used for mine, quarry, road construction for
the drilling and blasting work, water well drilling, slope
protection, anchoring, etc.
Features
A high-pressure DTH hammer is typically made up of several
components. The main parts include the hammer body, piston, bit
shank, and valve system. The hammer body is a durable cylindrical
structure that houses the internal components and provides support
and stability during drilling.
The hammer's piston, housed inside the hammer body, moves back and
forth under the force of the high-pressure air. This reciprocating
motion of the piston generates a powerful impact force on the drill
bit, allowing it to break and fracture the rock formation.
Packing
Packing: wooden box.
Delivery: Normally 5-7 days after down payment.
Shipping method: by express, by air or by sea
Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation
specialized in manufacturing and exporting top quality drilling
equipment and drilling parts for more than 20 years. We are
supported and assisted by highly experienced R&D team and
enginners that enable us to complete all the assigned projects
successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction
area is about 150,000 square meters, having machining machinery,
CNC processing center, friction welding machine, testing equipments
etc. over 200 sets and more than 600 employees.
FAQ
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ?
A: No requirement for testing and trial order.
