180m deepth crawler water well drilling rig GL180R portable
hydraulic water well drilling rig machine
1.Description:
*GL180R water well drill rig with rubber tracks.This model can drill max. 180m deepth.
* Mature and reliable hydraulic top drive power head with large
bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the
requirements of long casing construction and has high work
eficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression
feed system for fine adjustment of diling pressure according to
dilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid
leveling of the rig without liting.
The swing-type centering device provides a wide working space when
working.
2.Features:
>>Easy and flexible full hydraulic control
The water drilling rig's speed, torque, thrust axial pressure,
reverse axial pressure, thrust speed, and lifting speed can be
adjusted at any time to meet the requirements of different drilling
tool working conditions and different construction processes
>>Top-drive slewing propulsion lift
This borewell rig is easy to connect and disconnect the drill pipe,
shorten the auxiliary time, and also facilitate drilling with the
pipe.
>>Multifunctional drilling process
This drilling rig adopts air DTH drilling and mud pump circulation
drilling process. it is optional items to install mud pumps, foam
pumps, and generators into the drilling machine chassis
3.Specifications:
(For reference,more details please contact us)
| GL180R Item | Specification | | Weight of the rig(T) | 3.6 | | Drilling diameter(mm) | 138-203 | | Drilling depth (m) | 180 | | Feeding stroke(m) | 3.5 | | Moving speed(km/h) | 2.5 | | Climbing ability(°) | 30 | | Diesel engine(kw) | 60 | | Air pressure (mpa) | 1.8-2.3 | | Air consumption(m³/min) | 17-31 | | Rod diameter(mm) | Φ76 φ89 | | Rod length (m) | 1.5 3.0 | | Lifting force (T) | 12 | | Rotary speed (r/min) | 35-60 | | Rotary torque(N.m) | 4500 | | Supporting legs (height*width)(mm) | 1100*2400 | | Rig dimensions(length*width*height)(mm) | 3000*1300*1850 |
| |

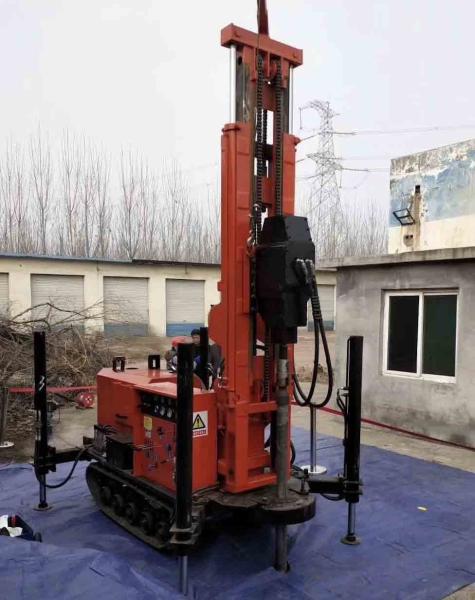

The Photo of products
Related Product
we can supply full set of drilling tools:drill pipe, tricone bit,
PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling
rig/RC drilling rig/Rock drilling rig etc.
