    Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL-III
    Certification : CE
    Price : USD670000-96000 per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    Urban GL-III 400m Depth Water Well Drill Rig 120-1500mm Hole Diameter

    GL-III Truck Mounted Drilling Rig


    Description

    ◆Drilling wells for urban and rural life

    ◆Drilling wells for agricultural irrigation and industries

    ◆Drilling for geotechnical survey

    ◆Drilling construction engineering holes

    ◆Drilling geothermal pump wells


    Technical Date


    Drilling Parameter
    Hole diameter:120--1500(mm)
    Hole depth:400(m)
    Run Of Rod:3,4(m)
    Drill rod diameter:φ73 φ89 φ95 φ133(mm)
    Drilling Technology:Normaland Reverse Circulation for both Mud and Air
    Down-The-Hole hammers:Middle-High-Pressure Air
    Performance parameter
    Drill Head Inside Diameter:φ80 φ120
    Drill Head lifting Force(kN):130
    Drill Head Spin Speed:A(Forward:20-33-73,Reverse:13-23-47r/min)
    B(Forward:41-66-146,Reverse:26-43-94r/min)
    B(Forward:36-58-127,Reverse:23-37-80r/min)
    Shape Parameters
    Dimensions:(L-W-H) Working conditions 9600×2950×7900(mm)
    Transport status:(L-W-H) 10200×2470×3300(mm)
    Supporting Form:Hydraulic Unit
    Mast Up-Down:Hydraulic Unit
    Rig mass:12500(Kg)
    Chassis:Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive)
    Power Unit:Diesel Engine
    Power:84(kW)
    Pump:BW600/30 Mud Pump
    Flow(m³/h):720 513 335
    Pressure(MP):3 4 5
    Main Hoist Lifting Force:25(kN)
    Auxiliary Hoist Lifting Force:8(kN)
    Notes: Drill head spin speed can be selected, A is normal

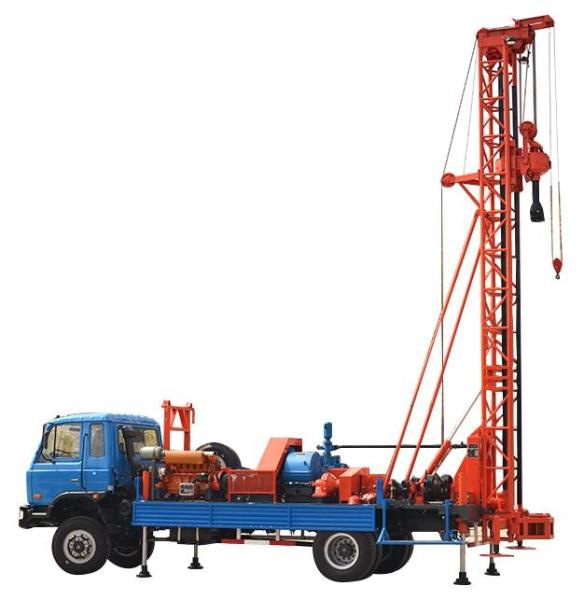

    Product Picture
