    Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL-ⅡA
    Certification : CE
    Price : USD60000-85000 per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets per year
    Delivery Time : 15-25days
    • Product Details
    • Company Profile

    Geotechnical Survey Well Drilling Rig Truck Mounted For 150mm Hole Diameter

    GL-IIA Truck Mounted Drilling Rig


    Description

    ◆Drilling wells for urban and rural life
    ◆Drilling wells for agricultural irrigation and industries
    ◆Drilling for geotechnical survey
    ◆Drilling construction engineering holes
    ◆Drilling geothermal pump wells


    Technical Date


    Drill Rig
    Engine powerYuchai YC6A210D 155KW
    Feed force/pull back force320/320KN
    Rated torque1300N·m
    Main Shaft Rotating Speed0-48,0-96r/min
    Feeding Stroke3300mm
    Guide hole diameterΦ150(185)mm
    Penetration Angle8-20°
    Hydraulic system pressure20Mpa
    Travelling Speed2-2.6Km/h
    StructureRubber track, mud pump all-in-one machine
    Dimensions2.85(L)×2.25(W)×2.4(H)m
    weight8.4T
    Mud pump
    ModelBW-320
    Max. Flow Rate320L/min
    Max. pressure7Mpa(10Mpa)
    Pulping system
    Engine parameters4KW diesel engine
    Pulping pump parameters30m3/h
    Slurry tank capacity2m3
    Volume6m3/h
    Drilling Tools
    Drill RodΦ73×3000mm
    Pilot bitΦ130(150)mm
    Fluted BackreamerΦ325 Φ400 Φ500 Φ600 Φ720Φ830
    Measurement and control instrumentOptional

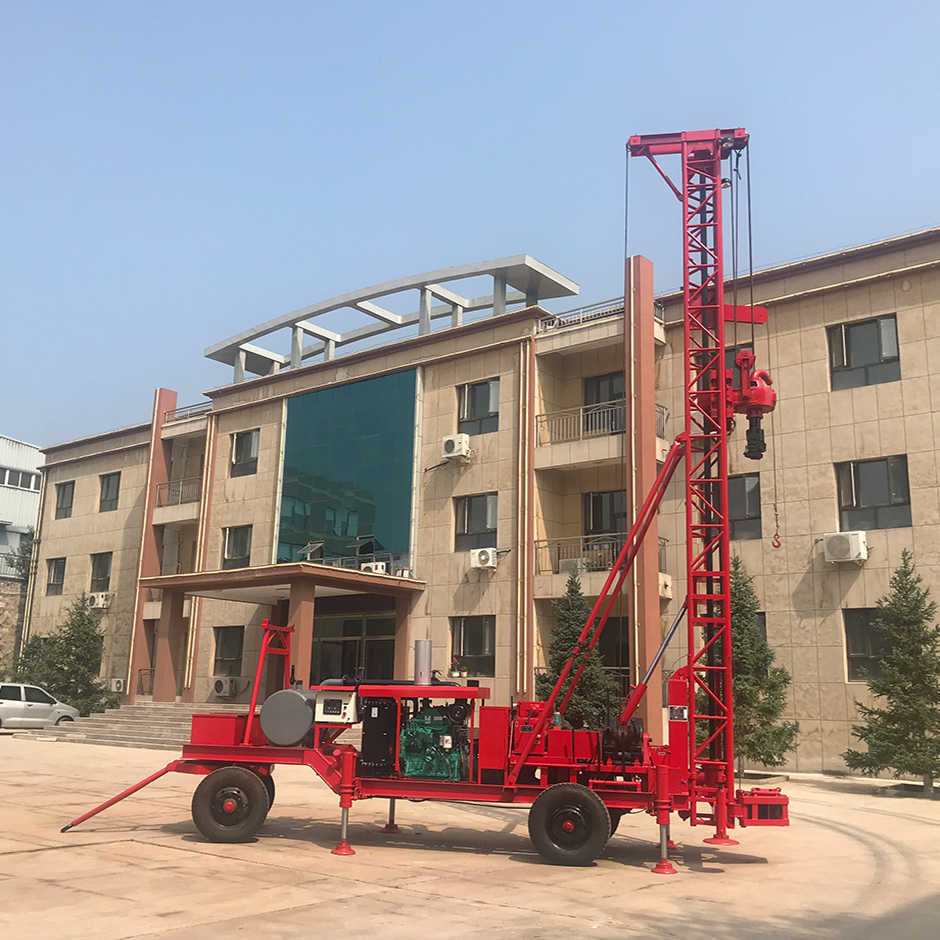

    Product Picture


    Company Profile



    Glorytek Industry (Beijing) Co., Ltd.

    Glorytek Industry (Beijing) Co., Ltd. is a renowned manufacturer and supplier of exceptional drilling equipment and drilling parts, boasting an extensive track record of over two decades. Our distinguished R&D team and engineers, with their vast expertise, provide invaluable support and assistance, guaranteeing the successful completion of every project, meticulously tailored to meet our clients' specific requirements.

    Our cutting-edge products find wide-ranging applications in water well drilling projects, geological explorations and SPT (Standard Penetration Test), anchor grouting projects, side slope protection engineering, oil and gas engineering, rock drilling, and precise blasting operations, as well as hdd (horizontal directional drilling) for city construction pipeline laying projects, among others.
