HDD Drill pipes
Product Description
Drill pipes that are used in applications such as DTH/ DTHR/ DR
basically comprise of a steel pipe with a pin at one end and a box
on the other. The job of the drill pipe is to transmit rotational
torque and thrust from the drill rig rotary head to down hole
drilling tools.
According to different application, different diameters of drill
tubes are needed, basically, smaller DTH hammers need smaller DTH
drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm,
89mm, 95mm, 102mm, 114mm 127mm, 140mm, 159mm etc.
Usually the threads are standard API connections, like 2 3/8" API
REG thread, 3 1/2" API REG thread or API IF thread, etc.
According to customers request, from1000mm to 6000mm length of pipe
are available.
Product Parameters
RIG BRAND | DRILL PIPE MODEL | OUT. Dia of Tool Joint (mm) | OUT. Dia of tube (mm) | Working length (m) |
JT 2720 | JT 2720 FFW | 70 | 54 | 3 |
| JT 3020 ALL TERRAIN | JT 3020 AT (2 3/8 IF SH) FWW | 82,5 | 62,5 | 2.855 |
JT 4020 | JT 4020 FFW | 82,5 | 76,1 | 4.5 |
JT 7020 MACH 1 | JT 7020 MACH 1 FFW | 102 | 88,9 | 4.5 |
JT 8020 MACH 1 | JT 8020 MACH 1 FFW | 102 | 88,9 | 4.5 |
JT 100 MACH 1 | JT 100 MACH 1 FFW | 102 | 88,9 | 4.5 |
VERMEER D7x11 SERIES II | D7x11 (F120 #200) | 48 | 38 | 1.829 |
VERMEER D9x13 SERIES II | D7x11 (F120 #200) | 48 | 42,4 | 1.829 |
VERMEER D20x22 SERIES II | D24A FFW 48 (F140 #400) | 57,15 | 48,3 | 3.048 |
VERMEER D24x40 SERIES II | D24x40 FFW F1 (F160 #600) | 68 | 60,3 | 3.048 |
VERMEER D36x50 SERIES II | D36x50 FFW (F260) | 70 | 60,3 | 3.048 |
VERMEER D55x100 | D80x100 FFW F1 (F180 #800) | 93 | 88,9 | 4.572 |
VERMEER D80x100 SERIES II | D80x100 FFW F1 (F180 #800) | 93 | 88,9 | 4.572 |
VERMEER D100x120 SERIES II | D100x120 FFW (F289) | 108 | 88,9 | 6.096 |

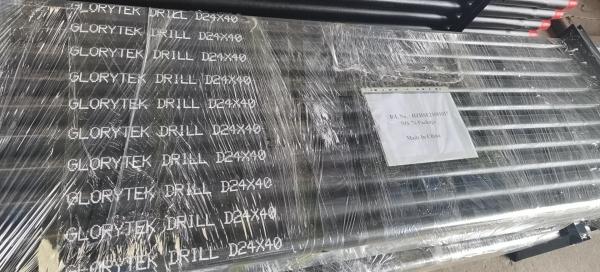

Detailed Photos
Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and
exporting top quality drilling equipment and drilling parts for
more than 20 years. We are supported and assisted by highly
experienced R&D team and enginners that enable us to complete
all the assigned projects successfully as per clients'
requirements.
Our factory covers an area of 250,000 square meters, construction
area is about 150,000 square meters, having machining machinery,
CNC processing center, friction welding machine, testing equipments
etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including
Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia,
South Korea, France, Sweden, USA, Canada, Haiti etc.
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
Q: Which kind pf application can be used for tricone bit?
A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.
Q: What is the MOQ?
A. The MOQ is 1 Piece
Q: What is the payment terms?
A: We can accept payment by T/T, Credit Card, Western Union, etc.
