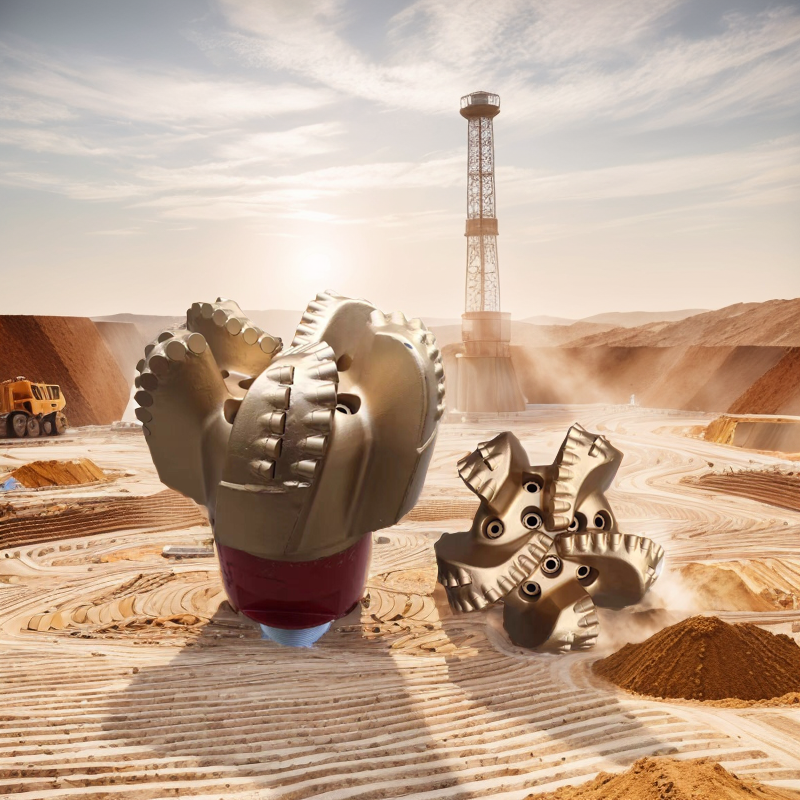

1. Description
- Wings: 2-wings,3-wings, 4-wings, 5-wings and 6-wings etc.
- Nomal Size: 6'',7 7/8'',8 1/2'',9 7/8'',12 1/4'',17 1/2''(27mm-559mm)
Designed specifically for oil drilling and exploration, this steel body bit offers efficient oil extraction and exploration capabilities. Its high-performance design ensures maximum drilling efficiency, reducing drilling time and costs.
Invest in our PDC Drill Bit for efficient oil drilling and experience enhanced drilling performance, increased productivity, and reduced operational costs. Trust in our high-quality product to meet your drilling needs and achieve optimal results.
2. Product Parameters
| Bit Type | 6" | 8-1/2" | 8-1/2" | 12-1/4" | Bit Type | 17-1/2" GM1606T |
| IADC Code | M423 | M432
M332 | M323 | M432 M332 | IADC Code | M323 |
| Blade | 5 | 6 | 8 | 6 | Blade | 6 |
| Cutter Size (mm) | Φ13MM | Φ16MM | Φ13MM | Φ16MM | Cutter Size (mm) | Φ16MM;Φ13MM |
| Nozzle Qty/Type | 5 | 13.2 | 9.6 | 30.78 | Cutter Qty | Φ16×58;Φ13×81 |
| Nozzle Qty/Type | 3NZ | 6NZ | 4NZ | 6NZ | Nozzle Qty/Type | 8NZ |
| Gauge Length | 1.5" | 2.2" | 2" | 2.5" | Gauge Length (mm) | 110 |
| Connection | 3-1/2" API REG | 4-1/2" API REG | 4-1/2" API REG | 6-5/8" API REG | Connection | 7-5/8" API REG |
| Make up Torque(KN.m) | 10.4~11.4 | 24.1~26.5 | 24.1~26.5 | 51.7~56.9 | N.W./ G.W.(KG) | 338/388 |
| Rotary Speed(rpm) | 60-260 | 60-260 | 60-260 | 60-260 | Nozzle Size (inch) | 10/32 |
| Weight on Bit(KN) | 8-50 | 20-100 | 20-100 | 30-140 | Rotary Speed(Rpm) | 60-260 |
| Max.WOB(KN) | 90 | 130 | 130 | 180 | Weight On Bit(KN) | 30-200 |
| Flow Rate(lps) | 10-30 | 22-35 | 22-35 | 38-70 | Max.WOB (KN) | 240 |
| | | | | | Flow Rate(lps) | 45-80 |
| Above are regular sizes for your reference. Size can be customized as per your requirement. |
3. Application
1. PDC drill bit is used for weak and dangerous rock, foundation treatment, broken ground and other grouting reinforcement drilling;
2. It is used for tunnel ventilation, exhaust gas, monitoring drilling of rock mass buildings and concrete sampling drilling.
3. The application of balancing software makes the angle of cutting teeth more scientific.
4.Detailed photo
5.Packaging & Shipping
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q:How to get an exact quotation?
A: Please send us detailed information as below:
-Tricone bits(Diameter, IADC code)
-PDC bits(Matrix or Steel body, blades quantity, cutter size, etc)
Q:How about lead time,payment terms, delivery ?
A:We accept all regular payment terms including L/C, T/T, etc.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
