YSJZ6.12 Hydraulic Jumbo Mine Machine Vertical Shaft

Ask Lasest Price
Brand Name :	Glorytek
Model Number :	YSJZ6.12
Certification :	CE
Price :	USD51000-57500 per SET
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	65 Sets per Month
Delivery Time :	25-35 days

Add to Cart

Product Details
Company Profile

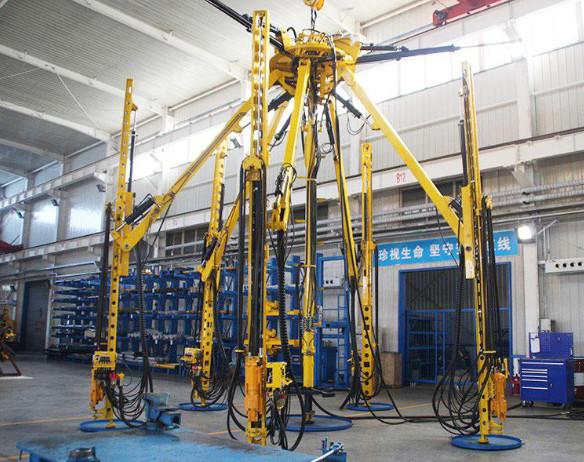

YSJZ6.12 Hydraulic Jumbo Mine Machine Vertical Shaft

YSJZ6.12 Hydraulic Vertical Shaft Drilling Jumbo

Product Description

YSJZ series veritical shaft drilling jumbos are advanced mechanized special rock drilling equipment developed by us for the construction of small diameter shafts in iron ore and nonferrous metal mines.The drilling power of this machine is strong,and it adopts hydraulic transmission type, and all actions are mechanized.The drill rod moves quickly, accurately and steadily,and is equipped with a high-performance rock drill, which ensures high rock drilling efficiency.

YSJZ6.12 Hydraulic Jumbo Mine Machine Vertical Shaft

Technical Parameter

Model	YSJZ4.8	YSJZ3.6	YSJZ6.12
Boom number	4	3	6
Drilling range(mm)	Φ1650-Φ9000	Φ1650-Φ6500	Φ1650-Φ12000
Retracted dimension(mm)	Φ2100×8000	Φ1700×7300	Φ2250×8200
Moving boom swing angle(°)	120	130	120
Drilling frame weight(kg)	8200	6000	12500
Pump unit weight(kg)	2600	2000	4400
Hole diameter(mm)	Φ45-Φ54	Φ45-Φ54	Φ45-Φ54
Hole depth(mm)	5100	4200	5100
Propeller method	guide rail,oil cylinder,wire rope
Feed length(mm)	5878	6774	6774
Working flow(L/min)	350	220	700
Power(kw)	90	55*2	90*2
Electrical motor(r/min)	1480	1480	1480
Voltage	0-500m shaft (350/660/1140v)	500-1000m shaft (660/1140v)	Over 1000m shaft (1140v)

Our Company & Service

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

Certificate

Customer Visit

Exhibition

FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools
would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
