Underground Rock Mining Jumbo Drilling Machine Cytc71 High Efficient

Ask Lasest Price
Brand Name :	Glorytek
Model Number :	Cytc71
Certification :	CE SGS
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :	40sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Underground Rock Mining Jumbo Drilling Machine Cytc71 High Efficient

Underground Rock Mining Jumbo Cytc71 Drilling jumbo machine for sale

Description

Discover the efficient and heavy-duty CYTC71 Underground Hydraulic Rock Mining Jumbo. This top hammer hydraulic drill is perfect for deep hole rock drilling in underground mining. Get the best underground drilling equipment from Glorytek Industry (Beijing) Co., Ltd., your trusted hydraulic rock drill equipment supplier.

Underground Rock Mining Jumbo CYTC71

Experience high-quality mining operations with our medium-sized medium to deep hole rock drilling jumbo. With a drilling diameter of 64-89mm, this jumbo is designed to deliver exceptional performance. Equipped with a high-performance top hammer rock drill and our advanced control system, it ensures high positioning accuracy, production efficiency, and drilling quality.

The rod storage device can accommodate 27+1 drill pipes, allowing for a drilling depth of up to 42m (1525 drill pipes). Whether you need to drill fan-shaped holes on vertical or inclined decks or parallel holes of 1.5m, this jumbo is up to the task.

Glorytek Industry (Beijing) Co., Ltd. is proud to offer this underground hydraulic jumbo, designed to meet the needs of the mining industry. Trust in our expertise as a leading supplier of rock drill machines and drilling equipment.

Tehnical Parameter

CYTC71	CYTC71 Pro	CYTC72D
Cross section	3500×3500-5000×5000mm	3800×3800-6000×6000mm	3200×3200-4000×4000mm
Overall dimension	7900×2400×2300(3000)mm	8200×2400×2200(3000)mm	8700×1600×2000(2800)mm
Ground clearance	300mm	270mm	240mm
Total weight	14500 ±500 kg	16500±500 kg	15500 ±500 kg
Horizontal hole range	1500mm	1500mm	1500mm
Boom compensation stroke	900mm	900mm	900mm
Boom pitching angle	45° 65°	25° 65°	30° 50°
Turning radius	3350mm (inner) 5850mm(outer)	3820mm(inner) 6550mm(outer)	3350mm(inner) 5750mm(outer)
Engine	YTO	CUMMINS	YANMAR / YC
Engine power	73.6 kW	81 kW	53.7kW / 73.6kW
Total installed power	65.5kW/85.5kW	87.5kW	85.5kW
Main motor power	55kW/75kW	75kW	75kW
Voltage(customized)	380V	380V	380V
Rod storage capacity		27+1	27+1
Rock drill (optional)	YYG22U,YYG18U,RC2200, HC95	YYG22U,RC2200	YYG22U,RC2200

	YYG22U	YYG18U	HC95	RC2200
Shank adaptor	T38/T45	T38	T45	T45
Rock drill length	1097mm	1007mm	1032mm	1076mm
Impact power	22kW	18kW	24kW	21kW
Impact frequency	53Hz	60Hz	55Hz	55Hz
Impact pressure	220bar	220bar	200bar	220bar

Overall length of thruster	3160 / 3465 mm	3160 / 3465 mm	2855 mm
Rod length	1220 / 1525 mm	1220 / 1525 mm	915 mm
mechanized drilling depth	35/42.6 m	35 /42.6m	26 m

Company Profile

Underground Rock Mining Jumbo CYTC71Experience the ultimate in underground drilling with the
Underground Rock Mining Jumbo CYTC71 from Glorytek Industry
(Beijing) Co., Ltd. With over 20 years of expertise in
manufacturing and exporting drilling equipment, we are dedicated to
meeting our clients' requirements and delivering successful
projects.

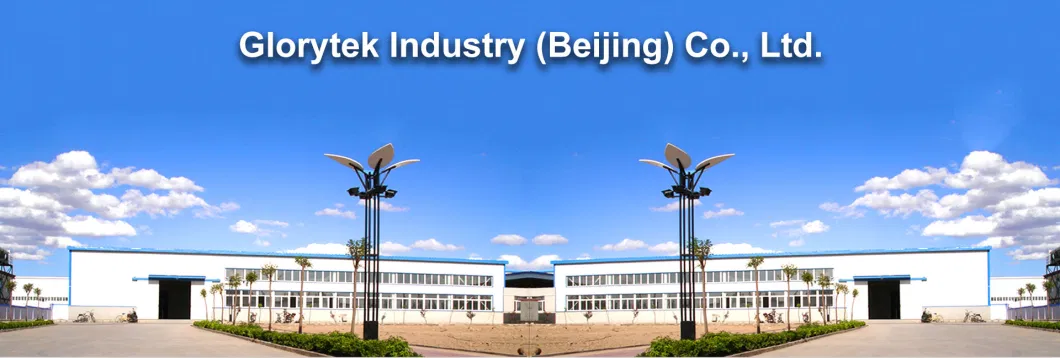

Our state-of-the-art factory spans an impressive 250,000 square
meters, with a construction area of approximately 150,000 square
meters. Equipped with advanced machinery, including CNC processing
centers and friction welding machines, we have the tools necessary
to produce exceptional drilling equipment.
Discover the power and efficiency of our Underground Rock Mining
Jumbo CYTC71. Designed for deep hole rock drilling in underground
mining operations, this top-of-the-line hydraulic drill machine is
the perfect solution for your drilling needs. With its low price
and high performance, it is the best underground drilling equipment
on the market.
Key Features:

Efficient hydraulic rock jumbo for fast and precise drilling

Heavy-duty construction for durability and reliability

Top hammer hydraulic drill for maximum drilling power

Deep hole rock drilling machine for reaching inaccessible areas

Low price drilling machine without compromising on quality
Trust Glorytek Industry (Beijing) Co., Ltd. as your reliable
supplier of rock drill equipment. Contact us today to learn more
about our Underground Rock Mining Jumbo CYTC71 and how it can
revolutionize your underground mining operations.

Packing

1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after
receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
