Truck Water Well Drill Rig 300m Deep 6x4 Truck Chassis Water Well
Drilling Rig
Introducing the Truck Water Well Drill Rig 300m Deep by Glorytek
Industry (Beijing) Co., Ltd. This high-quality drilling equipment
is perfect for water well drilling, with a maximum depth of 300m.
Get yours today!
Truck Water Well Drill Rig 300m Deep 6x4 Truck Chassis Water Well
Drilling Rig!

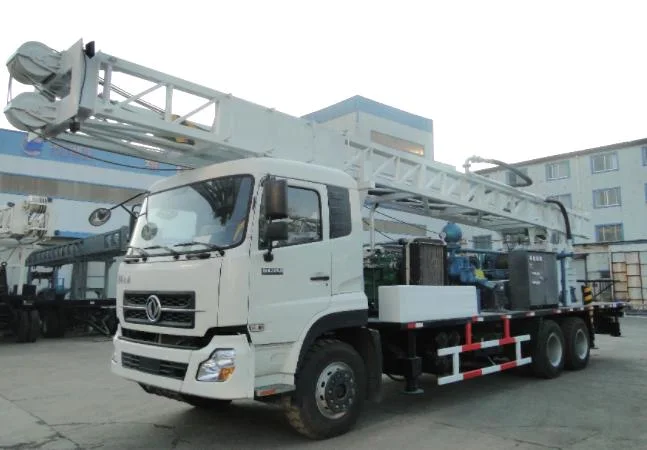

Are you ready to take your drilling game to the next level? Look no
further than the 300DF truck mounted water well drilling rig! This
direct circulation rotary drilling rig is designed to exceed your
expectations and deliver outstanding performance.
With its Dongfeng 6×4 special drilling rig chassis, the DFS1251GL18
model, and China III emission standard, this rig is built to tackle
any terrain. And let's not forget about the 11.00R20 steel wire
cross-country pattern tires that ensure exceptional off-road
capabilities.
But it's not just about the rugged exterior. The compact structure
of this drilling rig is powered by the mighty Yuchai YC6J180-33
diesel engine. With a whopping 132kw/2500rpm, this engine packs a
serious punch and guarantees strong power when you need it most.
When it comes to drilling, this rig doesn't mess around. It
utilizes an independent diesel generator set as the power source,
ensuring reliable performance every time. The motor drive system
allows the mechanical hoist and turntable to work seamlessly
together, making your drilling experience smooth and efficient.
So why wait? Get your hands on the Truck Water Well Drill Rig 300m
Deep from Glorytek Industry (Beijing) Co., Ltd. and experience the
thrill of drilling like never before. Don't miss out on this
incredible drilling equipment that's designed to exceed your
expectations!
Technical Parameter
| Nominal drilling depth (M) | 300 |
| Through hole diameter of turntable (mm) | 500 |
| Turntable speed (r/min) | 8.6-142 |
| Turntable torque (kN.m) | 38.9-2.4 |
| Single rope pulling force of main winch (kN) | 30 |
| Main hook lifting capacity (kN) | 240 |
| Single rope pulling force of auxiliary winch (kN) | 30 |
| Lifting force of secondary hook (kN) | 120 |
| Drill tower bearing capacity (kN) | 240 |
| Effective height of drilling tower (mm) | 11900 |
| Kelly rod (mm) | Φ108×108×7500 |
| Drill rod (mm) | Φ88.9×9.8×5500 |
| Power | Generator model | HH100/R6105AZLD-1 100kW |
| Main rig | Y225S-4 37kW/1470rpm |
| Mud pump | Y225S-4 37kW/1470rpm |
| Hydraulic pump | YE2-160M-4 11kW/1470rpm |
| Mud pump | Model | BW850/20 |
| Bore (mm) | 150 |
| Displacement (L/min) | 850, 600 |
| Pump pressure (MPa) | 2, 3 |
| Input power (kW) | 40 |
| Truck chassis | Chassis model | DFS1251GL18 |
| Chassis form | 6×4 |
| Engine | model | YC6J180-33 |
| Type | Water-cooled four-stroke supercharged and inter-cooled |
| Rated power (kW) | 132 |
| Rated speed (rpm) | 2500 |
| Dimension | Working status (mm) | 10500×2480×13700 |
| Transport state (mm) | 12500×2480×3700 |
Company Profile
Welcome to Glorytek Industry (Beijing) Co., Ltd., your trusted
source for high-quality drilling equipment. Explore our Truck Water
Well Drill Rig, capable of drilling up to 300m deep. Our
truck-mounted rig is perfect for water well drilling projects.
Contact us for the best prices on water well drill rigs.
Introducing the Truck Water Well Drill Rig 300m Deep
Get ready to revolutionize your drilling projects with the Truck
Water Well Drill Rig 300m Deep from Glorytek Industry (Beijing)
Co., Ltd. With over 20 years of experience in manufacturing and
exporting top-quality drilling equipment and parts, we are the
go-to choice for drilling enthusiasts worldwide.
Our highly experienced R&D team and engineers are dedicated to
ensuring the successful completion of all your projects, tailored
to your specific requirements. We pride ourselves on delivering
excellence in every aspect of our work.
Spanning an impressive area of 250,000 square meters, with a
construction area of 150,000 square meters, our state-of-the-art
factory is equipped with over 200 sets of machinery, including CNC
processing centers, friction welding machines, and testing
equipment. With a workforce of over 600 skilled employees, we
guarantee the highest level of craftsmanship.
Our Truck Water Well Drill Rig 300m Deep has already made its mark
in over 60 countries, including Australia, Russia, South Africa,
Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA,
Canada, and Haiti. Join the ranks of satisfied customers who have
experienced the power and efficiency of our drilling equipment.
Don't miss out on this incredible opportunity to enhance your
drilling capabilities. Contact us today to learn more about the
Truck Water Well Drill Rig 300m Deep and take your drilling
projects to new depths!
