DTH Hammers
Product Description
Glorytek offers a comprehensive range of DTH Hammers and bits,
including the CIR, DHD, QL, SD, Mission, and other series. These
drilling tools are renowned for their exceptional performance,
boasting high efficiency, a low failure rate, and an extended
service life. They are specifically designed to excel in
challenging drilling conditions, such as high hardness and abrasive
rocks, ensuring efficient and cost-effective drilling operations.
Our DTH Hammers and bits are meticulously crafted from high-quality
alloy steel, and they undergo advanced heat treatment processes to
guarantee optimal drilling performance and maximize their
longevity. This ensures that our drilling tools maintain their
durability and reliability even in demanding drilling environments.
With a global customer base, our DTH Hammers and bits are widely
trusted and utilized by drilling professionals worldwide. Their
exceptional quality and performance make them the preferred choice
for various drilling projects across different industries.
When you choose Glorytek's DTH Hammers and bits, you can expect
superior drilling efficiency, excellent durability, and reliable
performance, enabling you to achieve efficient and economical
drilling operations in even the harshest drilling conditions.
| ----Type and Technical Specification of High Pressure DTH
Hammers---- |
| Item | GL330 | GL335 | GL340A | GL345 | GL350 | GL355 | GL360 |
| Drilling Dia. (/mm) | 82-85 | 90-93 | 105-130 | 105-130 | 130-152 | 130-152 | 152-305 |
| Hammer Length(mm) | 867 | 908 | 1052 | 1034 | 1387 | 1220 | 1450 |
| Outside Dia. (/mm) | 71 | 81 | 92 | 98 | 114 | 124 | 136 |
| Weight(kg) | 19 | 21.8 | 38 | 39 | 69 | 74 | 126 |
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 |
Air Consumption
(M3/Min.) | 3-12 | 4.3-14.2 | 3.5-18 | 3.5-15 | 5.7-18 | 6.5-18 | 8.5-25 |
| Torque(N.M) | 150 | 205 | 304 | 335 | 590 | 700 | 822 |
| Impact Frequency (Times/Min.) | ≥800 | 950-1500 | ≥800 | ≥800 | 810-1470 | 810-1500 | 820-1475 |
| Connection 1 | 48.8×4.2 | API 2-3/8 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 2-3/8 | API 3-1/2 |
| Connection 2 | 47-6 | 53-8 | 64-8 | 64-8 | 84-8 | 84-8 | 99.5-8 |
| ----High Efficient High Pressure Hammer---- |
| Item | GL345A | GL355K | GL360K | GL380K |
| Drilling Dia. (/mm) | 105-130 | 140-152 | 165-219 | 203-350 |
| Hammer Length(mm) | 1034 | 1098 | 1372 | 1504 |
| Outside Dia.(/mm) | 98 | 124 | 152 | 180 |
| Weight(kg) | 39 | 70 | 92 | 230 |
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 |
| Air Consumption (M3/Min.) | 3.5-15 | 4.5-18 | 9- 26 | 9.6-24.8 |
| Torque(N.M) | 335 | 800 | 1150 | 1870 |
| Impact Frequency (Times/Min.) | ≥800 | 840-1500 | 950-1650 | 1100-1550 |
| Connection 1 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 4 1-2 |
| Connection 2 | 64-8 | 84-8 | 99.5-8 | 128-10 |
We can supply below Down The Hole Hammers
> Low Pressure DTH Hammers
> Medium Pressure DTH Hammers
> High Pressure DTH Hammers
> High Efficiency High Pressure DTH Hammers
> Through Reverse Circulation DTH Hammers

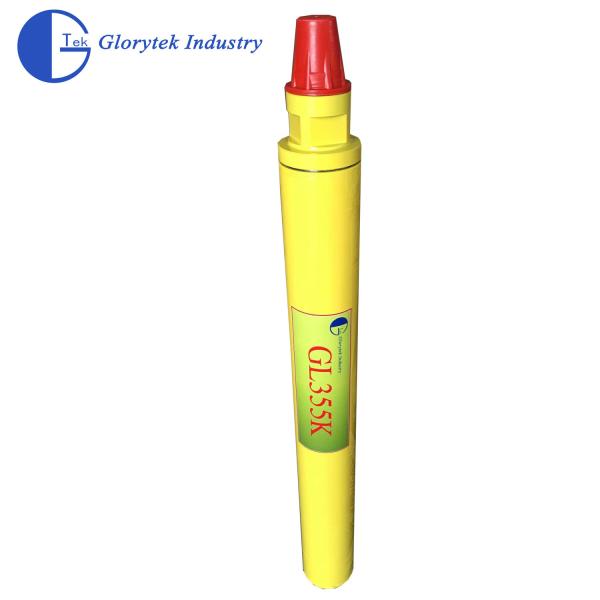

Product Picture
Company Profile
Glorytek Industry (Beijing)Co.,Ltd.,
Glorytek Industry (Beijing) Co., Ltd. is a reputable manufacturer
and exporter of high-quality drilling equipment and parts, with
over 20 years of experience. With a vast facility spanning 250,000
square meters and advanced machinery, including CNC processing
centers, we deliver reliable drilling solutions to clients
worldwide. Our products have gained global recognition, reaching
over 60 countries across the globe. We take pride in our commitment
to excellence and our dedicated team of engineers, ensuring
successful project execution and meeting specific client
requirements.
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing
and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill
pipe, tricone bit, PDC bit, drag bit. Moreover, we have drilling
equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by
T/T, 70% remaining payment before shipping by T/T. And 100% advance
payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can
deliver 3-5 days, and within 20days if we don't have enough stock.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict
inspection and testing for every order before shipping out.
