    6'' To 8'' Back Hammer Supplier In China High Quality DTH Drilling Tool For Sale

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL360、GL380
    Certification : CE
    Price : USD1050 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 4300 piece per month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    6'' To 8'' Back Hammer Supplier In China High Quality DTH Drilling Tool For Sale


    DTH Hammers

    Product Description


    ----Type and Technical Specification of High Pressure DTH Hammers----
    ItemGL330GL335GL340AGL345GL350GL355GL360
    Drilling Dia. (/mm)82-8590-93105-130105-130130-152130-152152-305
    Hammer Length(mm)86790810521034138712201450
    Outside Dia. (/mm)71819298114124136
    Weight(kg)1921.838396974126
    Working Pressure(Mpa)0.8-2.10.8-2.10.8-2.10.8-2.10.8-2.10.8-2.10.8-2.1

    Air Consumption

    (M3/Min.)

    3-124.3-14.23.5-183.5-155.7-186.5-188.5-25
    Torque(N.M)150205304335590700822
    Impact Frequency (Times/Min.)≥800950-1500≥800≥800810-1470810-1500820-1475
    Connection 148.8×4.2API 2-3/8API 2-3/8API 2-3/8API 3-1/2API 2-3/8API 3-1/2
    Connection 247-653-864-864-884-884-899.5-8
    ----High Efficient High Pressure Hammer----
    ItemGL345AGL355KGL360KGL380K
    Drilling Dia. (/mm)105-130140-152165-219203-350
    Hammer Length(mm)1034109813721504
    Outside Dia.(/mm)98124152180
    Weight(kg)397092230
    Working Pressure(Mpa)0.8-2.10.8-2.10.8-2.10.8-2.1
    Air Consumption (M3/Min.)3.5-154.5-189- 269.6-24.8
    Torque(N.M)33580011501870
    Impact Frequency (Times/Min.)≥800840-1500950-16501100-1550
    Connection 1API 2-3/8API 2-3/8API 3-1/2API 4 1-2
    Connection 264-884-899.5-8128-10

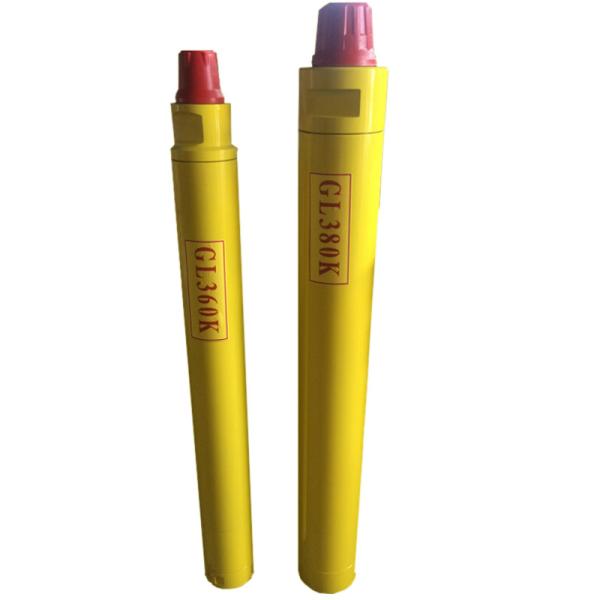

    Product Picture



    Company Profile


    Glorytek Industry (Beijing)Co.,Ltd.,


    is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

    Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

    Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.


    After-sale Warranty

    (1) Free change once the problem caused by the quality issue.
    (2) Timely after-sale assistance shall be provided all the time.
