    300m Deep Air Compressor And Water Well Drill Rig Integrated Truck

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL300AT
    Certification : CE, SGS, TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 20sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

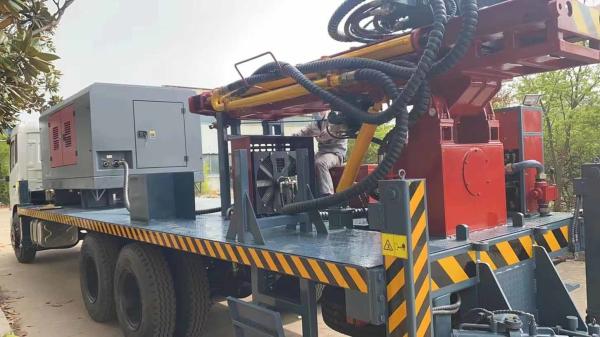

    300m Deep Air Compressor And Water Well Drill Rig Integrated Truck

    300m Deep Air Compressor And Water Well Drilling Rig Integrated Truck Water Well Drill Rig

    Description:

    GL300AT multifunctional crawler well drill is a new,highly-effective ,energy-saving and multifunctional hydraulic drill and it is specialized in drilling well ,monitoring well, geothermal air-conditioning hole drilling operations.


    The drill rig is equipped with hydraulic motor rotation with a high power,propulsion and lifting of cylinder and down-hole impacter with high blast pressure,to realize high effectiveness of drilling footage and lowenergy consumption.


    Tehnical Parameter:

    Drill Rig Spec.
    Max. drilling depth300m
    borehole dia.105-320mm
    recommended working pressure1.2-3.5Mpa
    Recommended air consumption16-55m3/min
    Drill rod length6m/3m
    Drill rod dia.89mm/102mm/114mm
    Feeding efficiency10-40m/h
    Winch lifting force1.1T (optional)
    DTH hammerMedium and high pressure type
    Truck Chassis Specification
    BrandSinotruk HOWO 6x4
    CabT5G-W
    Diesel Engine ModelMC09.35B-60(Displacement:9.0L, 6-cylinder)
    Diesel Engine Power350HP
    Drive Type6x4
    Wheelbase5700+1350
    Tire specifications12.00R20
    Front axleHF7 self-adjusting arm front axle
    rear axleST16 self-adjusting arm double rear axle,Speed ratio 4.8
    gearboxHW16709XST
    other configurationframe:8+5/300, 300L Aluminum alloy oil tank
    Air Compressor Specification
    BrandGlorytek
    Air pressure22bar
    Air output24m³/min
    Diesel engineYuchai YC6L310-H300
    Diesel engine power228Kw
    Dimensions3560*1830*2050mm
    Weight3560kgs
    Delivery valveG1 1 /2, G2

    Customer Visting

    Company Profile

    Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
    Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.


    FAQ

    Q: How can we choose a suitable water well drill rig?
    A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


    Q: Are you a factory or a trading company ?
    A: We are an integrated corporation specialized in manufacturing and exporting.


    Q: What is your payment terms?
    A: We can accept T/T,L/C.


    Q:.What is your MOQ? How long is the delivery time?
    A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


    Q:. How long is the warranty?
    A: The guarantee period for mainframe is one year (excluding the quick wear parts).


    Q: Can we print my Logo on the products?
    A: Yes, we can. We support OEM .
