Iadc 537 Tricone Bit Drilling For Water Oil Gas Drilling

Ask Lasest Price
Brand Name :	GLORYTEK
Model Number :	7 7/8" 200mm
Certification :	SGS, TUV
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100sets/month
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

Iadc 537 Tricone Bit Drilling For Water Oil Gas Drilling

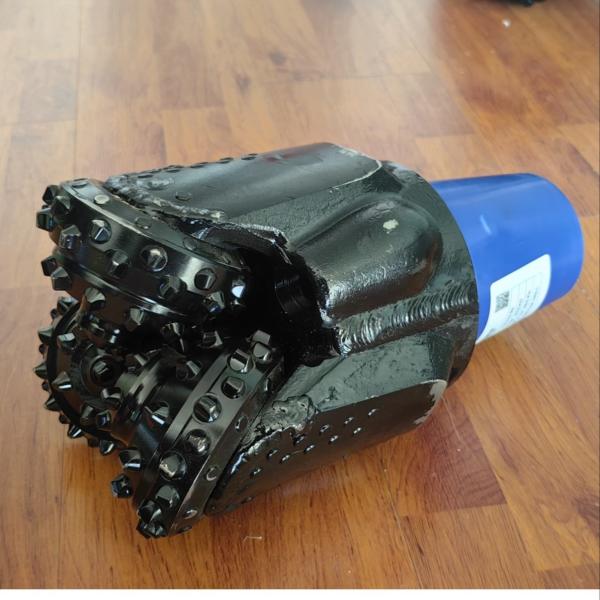

7 7/8" 200mm IADC537 TCI Tricone Rock Bit for Water Oil Gas Drilling

Description

According to the number of cones, it can be divided into single-cone, double-cone, three-cone and multi-cone bits. The most widely used at home and abroad is the tri-cone bit. Roller cone bits are an indispensable and important part in oil, water well, HDD and various drilling industries.

Product Features

1. The use of high-strength and high toughness hard alloy teeth improves the impact resistance of the teeth and reduces the rate of tooth breakage;

2. The optimized design of tooth arrangement, tooth number, exposed tooth height, and unique alloy tooth shape fully utilizes the cutting ability and cutting speed of the drill bit;

3. Adopting a snap spring to lock the tooth wheel, capable of withstanding high drilling pressure;

Technical Parameter

Basical Specification
Bit Size	200mm
IADC Code:	117/127/517/537 etc.
Thread Connection	2 3/8 API REG PIN
Series	rubber sealed bearing

Recommended Drilling Parameters
IADC	WOB(kn/mm)	RRM(r/min)	Applicable Formations
116 117	0.35~0.8	150~80	Very soft formations with low compressive strength and high drillability.such as clay,mudstone,chalk,etc.
126 127	0.35~0.9	150~70	Soft formations with low compressive strength and high drillability,such as mudstone,gypsum,salt,salt,soft shale,soft limstone,etc.
136 137	0.35~1.0	120~60	Soft to medium soft formations with low compressive strength and high drillability,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds,etc.
216 217	0.4~1.0	100~60	Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft for mations with harder interbeds etc.
246 247	0.4~1.0	80~50	Medium hard formations with high compressive strength,such as abrasive shale,limestone,sandstone,dolomite,hadr gypsum,marble,etc.
417 437 447	0.35~0.9	150~70	Very soft formations with low compressive strength and high drillability,such as clay,gypsum,salt,soft shale,soft limestone,etc.
517 527	0.5~1.0	140~60	Soft formations with low compressive strength ang high drillability such as mudstone,gypsum,salt,soft shale,soft limestone,etc.
537 547	0.45~1.0	120~50	Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,mediun soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds.etc.
617 627	0.45~1.1	90~50	Medium hard formations with high compressive strength such as hadr shale,limestone,sandstone,dolomite,etc.
637	0.5~1.2	80~40	Hard formations with high compressive strength, such as sandstone,limestone,dolomite,hard gypsum,marble,etc.
Note:the upper limits of WOB and Rpm in above lable should bot used simulaneously

Packing of Tricone Rock Bit

Packing: standard exporting packing.
Delivery: Normally 7-10 days after your advanced payment.
