Tricone roller bit 9 7/8 IADC437 TCI tricone drill bit for rock
drilling
1.Description:
-The 437 TCI bits are used to drill low compressive strength, very
soft formations. TCI bits maximize the use of both conical and
chisel tungsten carbide inserts of large diameters and high
projection. This cutting structure design, combined with maximum
cone offset, results in high bit penetration rates. The deep
intermesh of cutter rows prevents bit bailing in sticky formations.
-The cutting structure of Glorytek tricone bits is supported by
complete software and hardware. The cutting structure is designed
with precision and the performance of alloy teeth is superior. It
can cope with formations of different hardness and lithology, and
provide customers with high-efficiency and low-cost drilling
solutions.
-The Tricone Rock Bit is composed of three cones and three tooth
palms assembled together and processed with some necessary
functional structures. According to the structure, the tricone bit
can be divided into: bearing structure, cutting structure, cone tip
and cone back reinforcement structure, flow channel system,
injection system, oil storage pressure balance system and thread
connection.
2.Application:
Suitable for oil, natural gas, geothermal industrial and water well
drilling, HDD projects, etc.
3.Specifications:
| Bit size | API thread | recommended torque | | in | mm | in | KN.M | | 6 | 152.4 | 3 1/2 | 9. 5-12.2 | | 6 1/8 | 155.6 | 3 1/2 | 9. 5-12.2 | | 6 1/4 | 158.8 | 3 1/2 | 9. 5-12.2 | | 6 1/2 | 165.1 | 3 1/2 | 9. 5-12.2 | | 6 5/8 | 168.3 | 3 1/2 | 9. 5-12.2 | | 6 3/4 | 171.5 | 3 1/2 | 9. 5-12.2 | | 7 1/2 | 190.5 | 4 1/2 | 16. 3〜21. 7 | | 7 5/8 | 193.7 | 4 1/2 | 16. 3〜21. 7 | | 7 7/8 | 200 | 4 1/2 | 16. 3〜21. 7 | | 8 3/8 | 212.7 | 4 1/2 | 16. 3〜21. 7 | | 8 1/2 | 215.9 | 4 1/2 | 16. 3〜21. 7 | | 8 5/8 | 219.1 | 4 1/2 | 16. 3〜21. 7 | | 8 3/4 | 222.3 | 4 1/2 | 16. 3〜21. 7 | | 9 1/2 | 241.3 | 6 5/8 | 38〜43. 4 | | 9 5/8 | 244.5 | 6 5/8 | 38〜43. 4 | | 9 7/8 | 250.8 | 6 5/8 | 38〜43. 4 | | 10 1/2 | 266.7 | 6 5/8 | 38〜43. 4 | | 10 5/8 | 269.9 | 6 5/8 | 38〜43. 4 | | 11 | 279.4 | 6 5/8 | 38〜43. 4 | | 115/8 | 295.3 | 6 5/8 | 38〜43. 4 | | 12 | 304.8 | 6 5/8 | 38〜43. 4 | | 12 1/4 | 311.2 | 6 5/8 | 38〜43. 4 | | 12 5/16 | 312.7 | 6 5/8 | 38〜43. 4 | | 12 3/8 | 314.3 | 6 5/8 | 38〜43. 4 | | 12 7/16 | 315.9 | 6 5/8 | 38〜43. 4 | | 12 5/8 | 320.7 | 6 5/8 | 38〜43. 4 | | 13 1/8 | 333.4 | 6 5/8 | 38〜43. 4 | | 13 1/2 | 342.9 | 6 5/8 | 38〜43. 4 | | 13 5/8 | 346.1 | 6 5/8 | 38〜43. 4 | | 13 3/4 | 349.3 | 6 5/8 | 38〜43. 4 |
|
4.Feature Advantage:
(1) The use of high strength hig toughness carbide teeth.
(2) Hours in the rotary cone bit with the impact,crushing and
shearing the role of broken rock.
(3) cone bit to adapt to the soft,medium and hard of various
strata.
(4) Reasonable price and long working life.

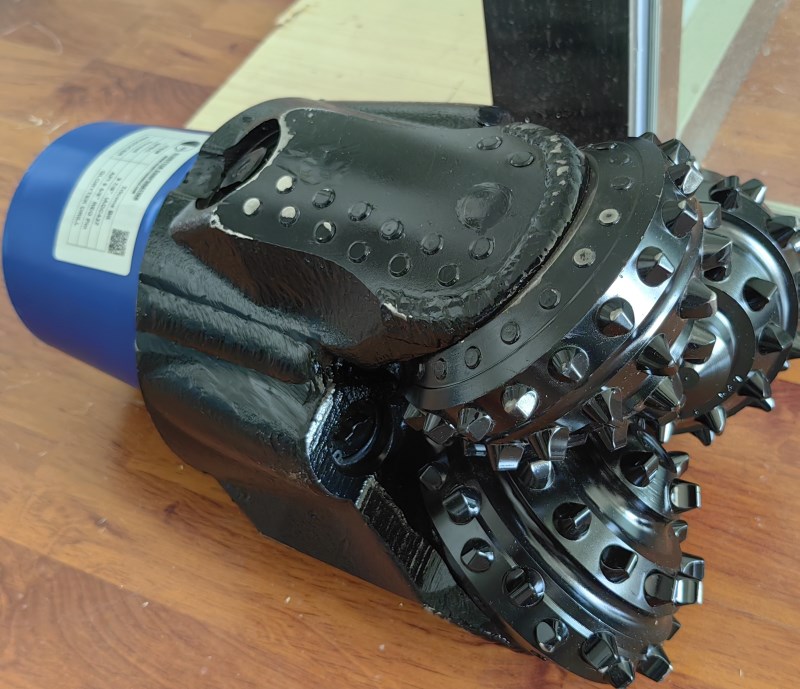

5.The Photo of products
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Our factory covers an area of 250,000 square meter, construction
area is about 150,000 square meter, having machining machinery, CNC
processing center, friction welding machine, testing equipment etc.
over 200 sets and more than 600 employees.Our products have been
exported more than 60 countries around the world.
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be
provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before
packing.
Q3: How can I get the after sale services?
A:Free replacement will provide once the problems casued by our
product quality.
