8 1/2" tricone drill bit / TCI tricone rock drill bit for water
well drilling and oil mining
1.Description:
-The 517 TCI tricone bit is a drill bit with a head that is divided into three
main parts. The tricone bit consists of three rotating cones
working inside each other and each with its own row of cutting
teeth.
-This series oil well rock bit use Journal bearing. Hardfaced head
bearing surface. Cone bearing inlaid with friction reducing alloy
and then silver-plated. The load capacity and seizure resistance of
the bearing is greatly improved.
-Surface of the high precision bearing heat treated by using
advanced heat treatment process to improve the load capacity and
service life of the bearing.
-The service life of the bearing is further extended by adopting
harder and mort wear resistant material for thrust bearing.
2.Applications:
Wry soft formation with low compressive strength and high
drillability, such as:
shale, clay, sandstone, gravel, etc.
3.Specifications:
| Bit size | API thread | recommended torque | | in | mm | in | KN.M | | 6 | 152.4 | 3 1/2 | 9. 5-12.2 | | 6 1/8 | 155.6 | 3 1/2 | 9. 5-12.2 | | 6 1/4 | 158.8 | 3 1/2 | 9. 5-12.2 | | 6 1/2 | 165.1 | 3 1/2 | 9. 5-12.2 | | 6 5/8 | 168.3 | 3 1/2 | 9. 5-12.2 | | 6 3/4 | 171.5 | 3 1/2 | 9. 5-12.2 | | 7 1/2 | 190.5 | 4 1/2 | 16. 3〜21. 7 | | 7 5/8 | 193.7 | 4 1/2 | 16. 3〜21. 7 | | 7 7/8 | 200 | 4 1/2 | 16. 3〜21. 7 | | 8 3/8 | 212.7 | 4 1/2 | 16. 3〜21. 7 | | 8 1/2 | 215.9 | 4 1/2 | 16. 3〜21. 7 | | 8 5/8 | 219.1 | 4 1/2 | 16. 3〜21. 7 | | 8 3/4 | 222.3 | 4 1/2 | 16. 3〜21. 7 | | 9 1/2 | 241.3 | 6 5/8 | 38〜43. 4 | | 9 5/8 | 244.5 | 6 5/8 | 38〜43. 4 | | 9 7/8 | 250.8 | 6 5/8 | 38〜43. 4 | | 10 1/2 | 266.7 | 6 5/8 | 38〜43. 4 | | 10 5/8 | 269.9 | 6 5/8 | 38〜43. 4 | | 11 | 279.4 | 6 5/8 | 38〜43. 4 | | 115/8 | 295.3 | 6 5/8 | 38〜43. 4 | | 12 | 304.8 | 6 5/8 | 38〜43. 4 | | 12 1/4 | 311.2 | 6 5/8 | 38〜43. 4 | | 12 5/16 | 312.7 | 6 5/8 | 38〜43. 4 | | 12 3/8 | 314.3 | 6 5/8 | 38〜43. 4 | | 12 7/16 | 315.9 | 6 5/8 | 38〜43. 4 | | 12 5/8 | 320.7 | 6 5/8 | 38〜43. 4 | | 13 1/8 | 333.4 | 6 5/8 | 38〜43. 4 | | 13 1/2 | 342.9 | 6 5/8 | 38〜43. 4 | | 13 5/8 | 346.1 | 6 5/8 | 38〜43. 4 | | 13 3/4 | 349.3 | 6 5/8 | 38〜43. 4 |
|
4.Tips:
Rock and many different kinds of earning, broad scope, from soft to
hard strata have a corresponding bit types to choose from, in
practice the drilling operation, according to the nature of the
drilled formation, chooses the appropriate type of bit, in order to
obtain high mechanical drilling rate and drilling footage.

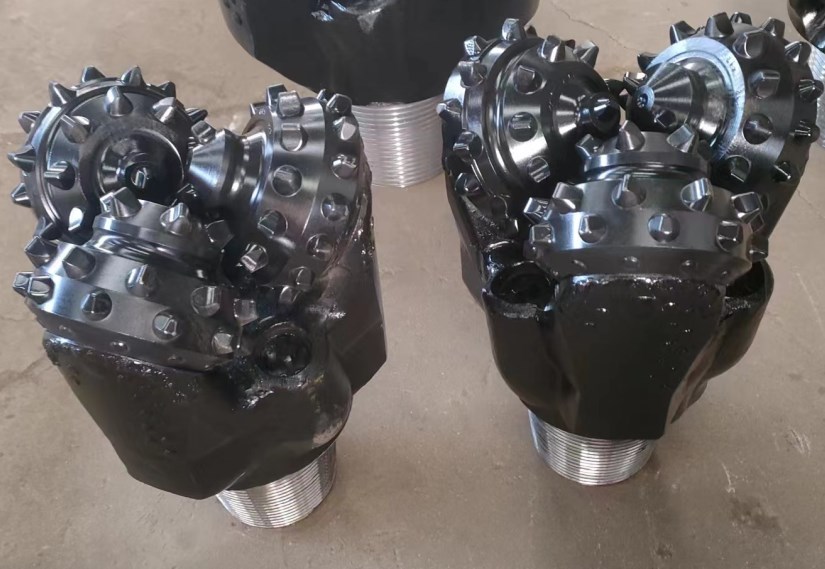

The Photo of products
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Our factory covers an area of 250,000 square meter, construction
area is about 150,000 square meter, having machining machinery, CNC
processing center, friction welding machine, testing equipment etc.
over 200 sets and more than 600 employees.Our products have been
exported more than 60 countries around the world.
