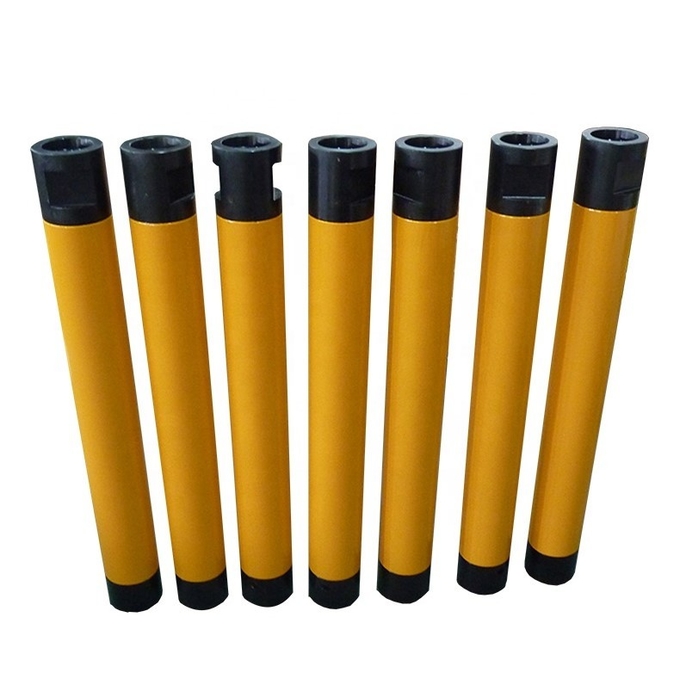

GL110 DTH Drilling Hammer Rock Drill Tools CIR110 Low Pressure DTH
Hammer
1.Features:
DTH Hammer has a wide range of use in all kinds of hard and
abrasive rocks.
>>DTH hammers are used for blast hole drilling and blasting,
mainly applied in Mining,
>>Marble quarry or well drilling and other construction
projects.
>>New products designed based on mining condition in china,
improving by advanced technology from global market.
>>Superior materials, advanced process,guaranteed quality.
>>Faster drillinq rate.
>>Hardness can be enhaced to expand the lifespan of hammer,
and lower the cost.
>>Huge impulse with low consumption of electricity.
>>The modern theory is adopted in the structural design,
which makes the stress.
2.Application:
They are widely used for mine, quarry, road construction for the
drilling and blasting work, water well drilling, slope protection,
anchoring, etc.
3.Specifications:
| Item | GL65B | GL70 | GL76 | GL80 | GL90 | GL90-1 | GL110 | GL150 | GL170 | | Drilling Dia.(ф/mm) | 68-70 | 72-74 | 74-76 | 80-82 | 90-130 | 90-130 | 110-150 | 150-185 | 170-250 | | Hammer Length(mm) | 745 | 803 | 766 | 796 | 796 | 796 | 838 | 908 | 1023 | | Outside Dia.(ф/mm) | 61.2 | 67.2 | 67.2 | 72 | 80.2 | 80 | 98 | 137 | 156 | | Weight(kg) | 13 | 14 | 15 | 17 | 20 | 20 | 30 | 75 | 90 | | Working Pressure(Mpa) | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | | AirConsumption(M3/Min.) | 2.5 | 3 | 3 | 5 | 6 | 5.5 | 11 | 17 | 19.5 | | Torque(N.M) | 51 | 70 | 75 | 81 | 110 | 120 | 180 | 340 | 420 | | Impact Frequency (Times/Min.) | ≥810 | ≥810 | ≥810 | ≥800 | ≥820 | ≥820 | ≥830 | ≥800 | ≥790 | | Connection 1 | M42×10×1.5P | DZ50 | M48×10×2P | M48×10×2P | M48×10×2P | M48×10×2P | API 2 3/8REG | API 3 1/2REG | API 3 1/2REG | | Connection 2 | ф37-4 | ф43-6 | ф44-4 | ф50-6 | ф54-6 | ф54-6 | ф65-6 | ф90-6 | ф98-6 |
|
4.Packaging & Shipping
We normally have stock, we can prepare shipment within 3 days after
placing order. Shipping by express, by air and by sea are all
available.
Related Product
We can supply full set of drilling tools:drill pipe, tricone bit,
PDC bit, drag bit, DTH hammer and bit etc.
Drilling equipment:Air compresoor and Mud pump.
Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling
rig/RC drilling rig/Rock drilling rig etc.
