    DTH Down The Hole Hammer Drill Rig Crawler Pneumatic Type For Rock

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL-416
    Certification : CE SGS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 40sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

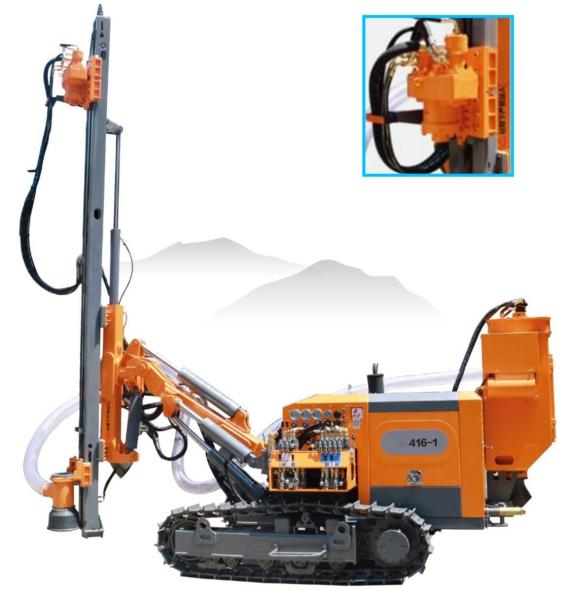

    DTH Down The Hole Hammer Drill Rig Crawler Pneumatic Type For Rock

    GL-416 Crawler Pneumatic Blasthole Drill DTH Hammer Rock Drill Rig


    Description

    GL-416 is configured with a powerful dual-motor driven rotary head and its rotary torque can reach 1,950N.m, and its rotary speed is adjustable combined with a multi-way regulating valve.

    GL-416 meets the requirement to drill diameter of φ130mm hole with φ76mm drill pipe. Rotation speed is up to 150rpm which satisfying the needs of some customers for high- speed drilling of soft rock formations.

    Also GL-416 drill with standard crawler and piston hydraulic driven motors contributed the climbing ability stronger, more stable and more reliable. lt's the highest configuration of its class.



    Tehnical Parameter

    Drill Pipe Sizes
    φ60x3,000mm
    Dril Pipe Dia.
    φ90-127mm
    Rotation Torque(Max.)
    1,950 N.M
    Rotation Speed
    0-150rpm
    Feed Force
    15kN
    Pull Up Force
    25kN
    Feeding Type
    Hydraulic cylinder-chain
    Tramming Speed(Max.)
    2.5km/h
    Gradient
    25°
    Total Weight
    4,500kg/4,250kg
    (L×W×H)Transportation Dimensions
    4,900x2,000x2,200mm

    Diesel Engine Specifications
    Rig Model
    Power
    Rated Power
    GL-416
    Yuchai YC4DK80
    58 KW
    GL-416-1
    Yuchai YC4DK80
    58 KW
    (Dust collection system as standard equipment)

    Details


    Company Profile


    Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. Wee are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.

    Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.

    Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.

    Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.



    FAQ

    Q: Are you manufacturer?
    A: Yes, we are factory with more than 20 years of manufacturing experience.

    Q: What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.

    Q: What is the warranty of our machine?
    A: Our main machine enjoys a 1 year warranty.

    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How do you make our business long-term and good relationship?
    A: We keep good quality and competitive price to ensure our customers benefits.
