    Mini Blast Hole Drilling Equipment Pneumatic Driven Low Pressure

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : 100B
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Mini Blast Hole Drilling Equipment Pneumatic Driven Low Pressure

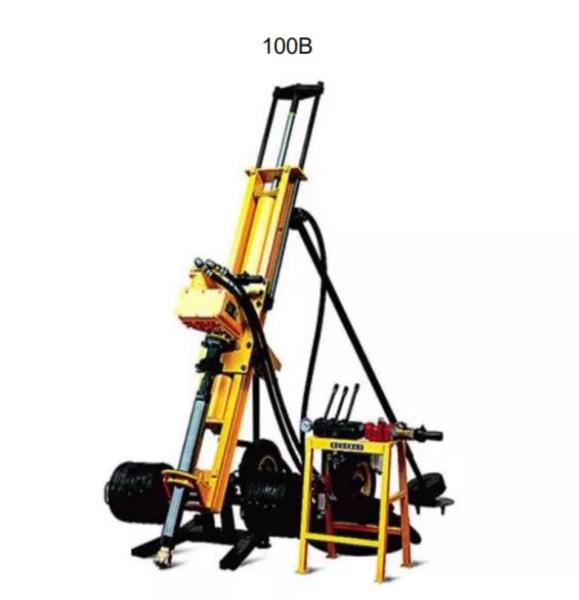

    100B Mini Pneumatic Driven Low Pressure Rock Drill Rig for Blast Hole Drilling


    Description:

    100B and 100D DTH drill rig is a kind of light and effective drill rig. It is cheaper and easier to be operated and repaired, especially to be used in stonework drilling, such as water and electricity project, construction of roads and national defense engineering. This machine can be applied for the rock hardness f=8-16 grade.

    100B is pneumatic driven model and 100D is electric motor driven model, they both could be matched with low pressure and medium pressure air compressor.


    Tehnical Parameter:


    Technical Parameters
    100B/D Low Pressure
    100B/D Medium Pressure
    Rock Rigidity
    f =8-16
    f =8-16
    Hole Diameter
    68-100mm
    68-100mm
    Hole Depth
    20m
    25m
    Air Pressure
    0.7-0.86MPa
    1.0-1.4MPa
    Air Consumption
    9-12m3/min
    9-12m3/min
    Feed Length
    1000mm
    1000mm
    Rotary Rate
    110-160r/min
    110-160r/min
    Size(L x W)
    2400 x 470mm
    2400 x 470mm
    Weight
    195kg
    195kg
    Water Consumption and Water Pressure
    8-12L/min,
    >air pressure 0.1-0.2Mpa
    8-12L/min,
    >air pressure 0.1-0.2Mpa
    Tunnel
    high 2.5m~3m,width≥2.5m
    high 2.5m~3m,width≥2.5m
    Angle
    any angle

    Drilling Efficiency(m/h)
    Low Pressure
    Medium Pressure
    Hole Diameter(mm)
    90
    100
    90
    100
    Air Consumption(m3/min)
    9.8/(6.8)
    7.4/10.4
    9.8/(12)
    106/(12)
    Suitable Air Compressor
    0.7-0.86Mpa
    1.0-1.4Mpa
    Hole Depth(m)
    20
    25
    Drilling Efficiency(m/h)
    7~9
    5~8
    10~15
    9~14
    Recommended Row Spacing(m)
    3
    3
    3
    3
    Recommended Hole Distance(m)
    3
    3.5
    3
    3.5

    Company Profile

    Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

    Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
