    Water Well Drill Rig Machines Diesel Powered For 200m Drilling

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL200R
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 40sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Water Well Drill Rig Machines Diesel Powered For 200m Drilling

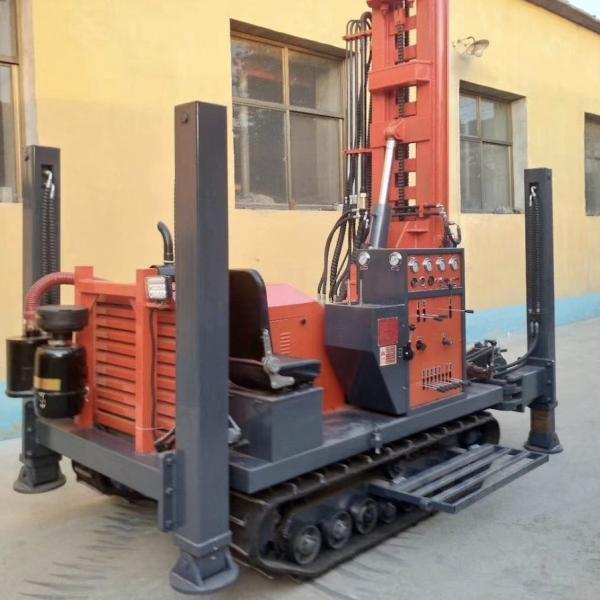

    GL200R Diesel Powered Rubber Crawler Water Well Drill Rig Machines For 200m Drilling


    Description:

    GL200R hydraulic pneumatic multi-functional deep water well drill is a light weight, efficient, multi-functional drilling equipment. It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other uses of wells, especially suitable for mountainous areas and rock formation water intake engineering.
    And as per clients' requirements, it can also be modified to be equipped with mud pump so that it can do mud pump rotary drilling. The cost is very competitive. Welcome to contact us for more information.


    Tehnical Parameter:


    Technical Parameter
    Max drilling depth200m
    Drilling diameter105-300mm
    Air pressure1.25-3.5Mpa
    Air consumption16-55m³/min
    Rod length3m
    Rod diameter76/89mm
    Main shaft pressure4T
    Lifting force16T
    Fast lifting speed20m/min
    Fast forwarding speed40m/min
    Rotary torque6500 N.M
    Rotary speed30/120r/min
    Winch lifting force1.5T
    High leg stroke1.35-1.5m
    Drilling efficiency10-35m/h
    Moving speed2.5Km/h
    Uphill angle21°
    Weight of the rig5.5T
    Dimension3.9m x 1.8m x 2.3m
    Working conditionloose layer or bedding rock
    Drilling method

    Top Hammer Hydraulic Rotating and feeding,

    Down the hole hammer or mud pump drilling

    Suitable hammerMedium and high pressure DTH hammer
    Optional accessoriesMud pump, centrifugal pump, generator, foam pump
    Diesel Engine77KW


    Company Profile


    Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

    Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

    Packing and Transport


    We packed products in standard exporting packing. Normally it will take around 20-25 days for production.
