    Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL350S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 40sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Fully Hydraulic Track Mounted Drill Rig , Borehole Drilling Equipment 350m Depth

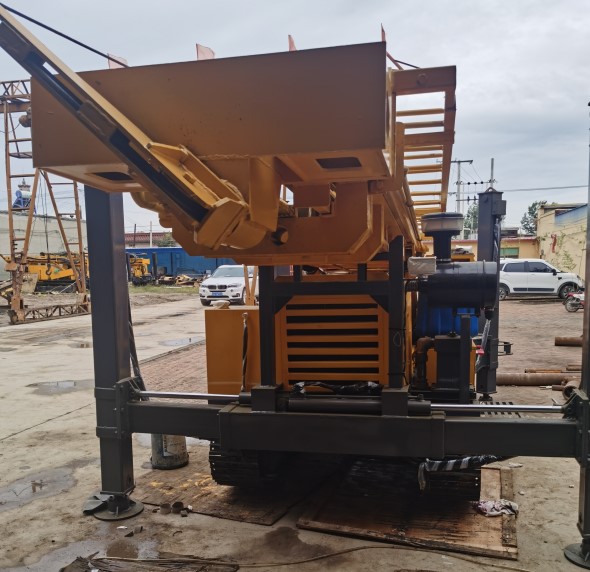

    GL350S Fully Hydraulic Track Mounted Borehole Drill Rig Machines for 350m Drilling


    Description:

    The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.

    nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.

    It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.


    Tehnical Parameter:


    Technical Parameter
    Max drilling depth350m
    Drilling diameter105-325mm
    Air pressure1.25-3.5Mpa
    Air consumption16-55m³/min
    Rod length3m/6m
    Rod diameter76/89/102mm
    Main shaft pressure6T
    Lifting force26T
    Fast lifting speed24m/min
    Fast forwarding speed50m/min
    Rotary torque9900 N.M
    Rotary speed30/170r/min
    Winch lifting force1.5T
    High leg stroke1.5m
    Drilling efficiency10-35m/h
    Moving speed2.5Km/h
    Uphill angle21°
    Weight of the rig8.5T
    Dimension5.9m x 1.8m x 2.3m
    Working conditionloose layer or bedding rock
    Drilling method

    Top Hammer Hydraulic Rotating and feeding,

    Down the hole hammer or mud pump drilling

    Suitable hammerMedium and high pressure DTH hammer
    Optional accessoriesMud pump, centrifugal pump, generator, foam pump
    Diesel Engine90KW
