Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth

Ask Lasest Price
Brand Name :	Glorytek
Model Number :	GL600S
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :	40sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth

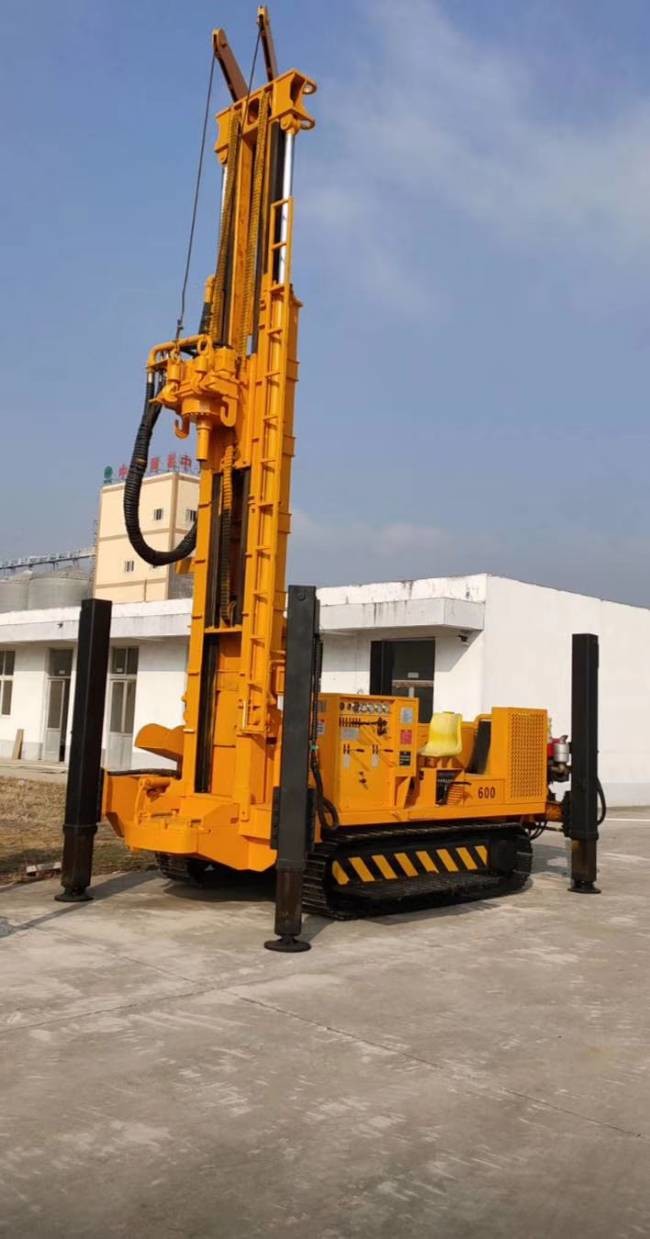

GL600S Track Mounted DTH Water Well Drill Rig Machines For Borehole

Description:

GL600S crawler water well drill rig machine is widely used in geothermal drilling, industrial drilling and agricultural drilling fileds.

It is equipped with steel crawler chassis, which is easily for crossing.

The diesel engine power is 191kw, big drilling capacity.

Tehnical Parameter:

Max Drilling depth (m)	600
Drilling diameter(mm)	105-325
Air pressure (Mpa)	1.2-3.5
Power head dia.(mm)	141
Rod length (m)	3.0 6.0
Rod diameter(mm)	89-102-114
Main shaft pressure (T)	8
Lifting force (T)	35
Power head stroke(M)	6.6
Max. rotary torque(N.m)	18000
Max. rotary speed (r/min)	100
Secondary winch lifting force (T)	3-5
Jacks stroke(M)	1.5
Moving speed(km/h)	2.5
Uphill angle(°)	21°
Weight of the rig(T)	13
The engine	191KW
Overall dimensions(MM)	570020002500
Working condition	Loose layer and bedrock
Drilling method	Top drive hydraulic rotary drilling, downhole hammer drilling,mud drilling

Track Mounted DTH Drilling Machine , Borehole Drilling Equipment 600m Depth

Customer Visting

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.

Warranty:

For drill rig main parts, if proved because of quality issue, we
can replace them free of charge within one year after shipping.
