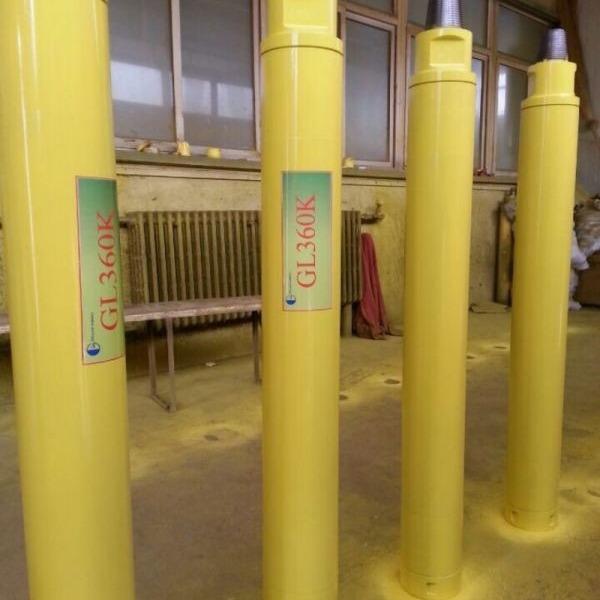

    Yellow High Pressure DTH Hammer , Reverse Circulation Hammer For Water Well Drilling

    High Pressure Reverse Circulation RC DTH Drilling Hammer for Rock Powders Sampling


    Description
    DTH Hammer is one of key components for drilling equipment. They are powered by compressed air medium and supply continuous impact for bottom rocks with down-the-hole bit. They are widely used in ore drilling, water well drilling, Geothermal drilling, foundation drilling and oil drilling.

    Advantages:


    1. The high-pressure impactor adopts the latest contemporary rock drilling theory to design the internal structure size of the impactor, so that the impactor can obtain the most ideal energy transmission, and the rock drilling speed is faster and the air consumption is lower.


    2. Select the best quality raw materials and the most advanced processing technology, the performance is more stable and the service life is longer.


    3. The high-pressure impactor has the simplest and most reliable internal structure and easy assembly and disassembly, with fewer faults and convenient maintenance. High wind pressure impactor is widely used in mining, quarry, road construction and other engineering drilling blasting holes, landslide protection, dam site reinforcement, anchoring and other engineering holes, hydrology and water wells and other fields.


    4. The application of the drilling diameter (80-185mm) mining blasthole achieves a record-breaking hole speed, and the medium and high pressure DTH impactor can convert the high wind into an unprecedented high perforation speed. It can work under the wind pressure of 0.56-2.46Mpa.


    5. Improve the life of the components, the design principle of the high-pressure DTH impactor is: strive to prolong the service life and reduce the maintenance workload. For example, the hardened, wear-resistant outer sleeve can be turned around for extended replacement periods.


    6. The high-pressure impactor can be used for the longest time. Due to the few parts used, the simple structure, and the use of wear-resistant components, the working time of the impactor can be extended.


    7. The drilling cost per foot is reduced to a minimum, and the increase of the perforation speed greatly increases the footage per unit of fuel. Maintenance costs are kept to a minimum due to the simple construction and long service life of the components.


    Technical Parameter
    ItemGL345AGL355KGL360KGL380K
    Drilling Dia. (ф/mm)105-130140-152165-219203-350
    Hammer Length(mm)1034109813721504
    Outside Dia.(ф/mm)98124152180
    Weight(kg)397092230
    Working Pressure(Mpa)0.8-2.10.8-2.10.8-2.10.8-2.1
    Air Consumption (M3/Min.)3.5-154.5-189-269.6-24.8
    Torque(N.M)33580011501870
    Impact Frequency (Times/Min.)≥800840-1500950-16501100-1550
    Connection 1API 2-3/8API 2-3/8API 3-1/2API 4 1-2
    Connection 2Ф64-8Ф84-8Ф99.5-8ф128-10
    Packing of DTH Drilling Hammer


    Packing: standard exporting packing.
    Delivery: Normally 5-7 days after your advanced payment.
