    Multifunctional Surface Exploration Drill Rig For 300m Drilling

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : GDL-350
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Multifunctional Surface Exploration Drill Rig For 300m Drilling

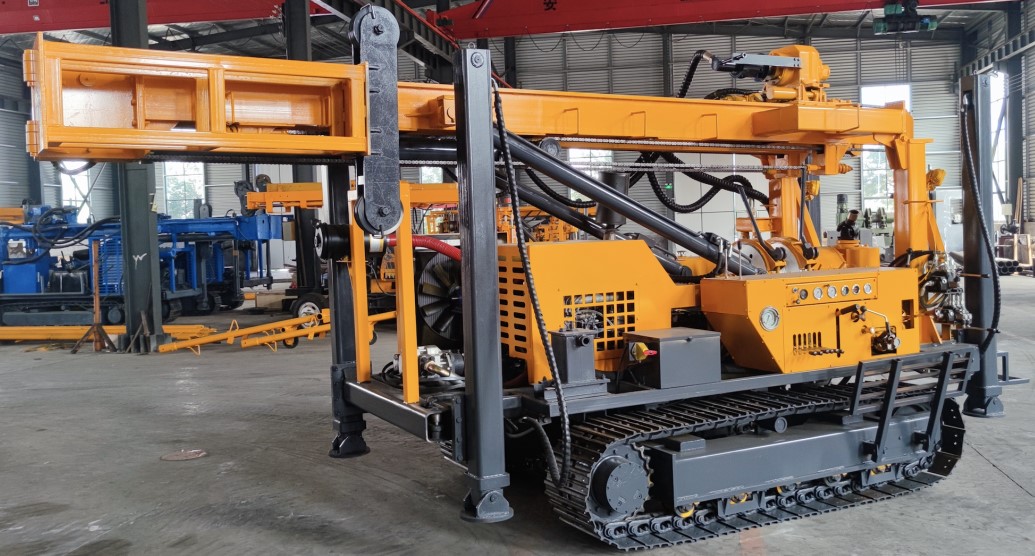

    GDL-350 Top Drive Multifunctional Surface Exploration Drilling Rigs


    ABOUT GDL-350 DRILL RIG:

    The drilling rig is a water well drilling equipment that integrates water drilling and air drilling functions. The drilling rig adopts a vehicle-mounted 525 gearbox, which is sensitive and convenient to switch gears. The transmission efficiency is doubled compared with hydraulic transmission, and the power consumption is reduced by 35%., which is energy efficienctly. It solves the difficult problems of air DTH hammer drilling in soil layers and low construction efficiency of rotary drilling rigs for hard rock layers, gravel and pebble layers.


    Applications:
    1: Core drilling NQ/HQ/PQ
    2: Air drilling + DTH hammer
    3: Mud drilling with mud pump

    Tehnical Parameter:


    Technical Specification
    Drilling capacityDrilling depth for water well300m(152mm~203mm)
    Wireline coring NQ size450~500m
    Borehole (Drill bit) dia.Ø75Ø350mm
    Drilling angle90°
    Drive headLifting capacity120KN
    Thrusting capacity85KN
    Rotary speed RPMForward:27,51,93,129,156/ 193,247,437,737,901 r/min
    Reverse:48/219 r/min
    Max. Torque10500N.m
    Power UnitEngine ModelYN27GBZ
    Rated power/speed58KW(65KW optional)/ 2400r/min
    Mechanical winch capacity4.5 Ton
    Drill pipeDrill pipe dia.Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
    Drill pipe length3000mm
    Mud pump(optional)BW160/ BW200/ BW250
    Generator(optional)
    Air lubricator (Optional)
    Crawler chassisWalking speed02 km/h
    Climbing angleMax. 25°~30°
    High leg stoke1.5M
    DimensionTransport5400*2000*2600mm
    Working3800*2400*7600mm
    Weight with steel crawler6500kg
    Multifunctional Surface Exploration Drill Rig For 300m DrillingMultifunctional Surface Exploration Drill Rig For 300m Drilling

    Company Profile


    Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We provide different types of coring rigs, which can be used for coring projects of different depths, different angles and different apertures. We can also provide a complete set of drilling tools.


    Our Service:

    - When the machine should be maintained, you will receive the reminding from us.
    - According to different geological conditions, we will recommend different construction plans for you
    - Remind you which are wearing parts, so you can prepare enough.
    - 24 hours respond to your quality problem.
    FAQ:

    1. Q: Are you trading company or manufacturer?
    A: We are original equipment manufacturer.

    2. Q: How long is your delivery time?
    A: It is according to the model and quantity.
    Generally it is 3-5 days if the machines are in stock.
    It will be 15-30 days if you want to customize the machines.

    3. Q: Do you provide samples? Is it free or extra?
    A: Yes, we could offer you the sample machine.
    But it's not free. You need to pay for the sample and the cost of freight.

    4. Q: What is your terms of payment?
    A: We accept T/T, Western Union, Money Gram, Paypal, Escrow etc.
