132kw 180HP Skid Mounted Drilling Rig For Deep Hole Exploration

Ask Lasest Price
Brand Name :	GLORYTEK
Model Number :	XY-8
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :	30 sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

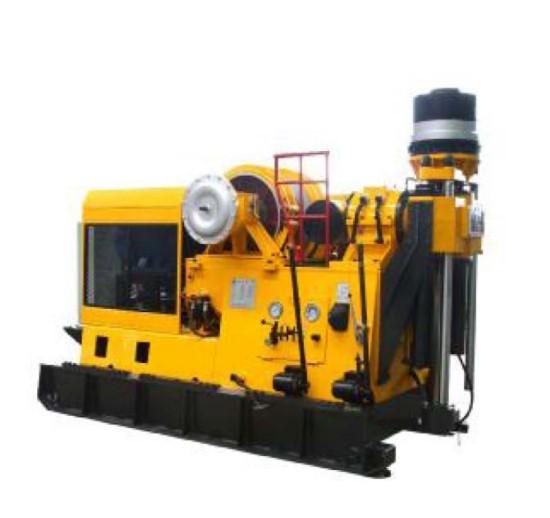

132kw 180HP Skid Mounted Drilling Rig For Deep Hole Exploration

XY-8 Core Drilling Rig Deep Hole Skid Type Exploration Drilling Rigs

Description:

The type of XY-8 Core Drill Rig is a kind of core drill rig for medium and deep hole drilling using diamond and carbide-tipped bits, with mechanical transmission, spindle rotation, hydraulic feeding. XY-8 is a type of vertical-spindle drilling rig.

The drill rigs can be applied to metallic and nonmetallic solid mineral deposits prospecting; shallow strata oil and natural gas exploration.

They could be used widely in geology, metallurgy, coal, hydrogeology, hydrological well and engineering and other industries fields.

The XY-8 could be used as traditional vertical-spindle drilling rig. It is the priority selection equipment and suitable for medium and deep depth hole drilling at present in China.

Tehnical Parameter:

Drilling depth		1000—3000 m (3280—9840 feet)
Rotate peed (rpm)	Clockwise rotation rates	79,136,121,363,220,379,589,1011
	Anti-clockwise rotation rates	51,142
Diameter of drilling rod		Ф50,Ф60,Ф71,Ф89,Ф114 mm (Ф1.97,Ф2.36,Ф2.80,Ф3.50,Ф4.49 inch)
Spindle stroke		1000 mm(39.4 inch)
Shift range		690 mm(27.2 inch)
Max. hoisting force		300 kN(67440 lbf)
Max. pressuring force		141 kN(31697 lbf)
Max. single-wire hoisting force		125 kN(28100 lbf)
Max. content of winding drum		120 m(394 feet)
Steel wire size		21.5 mm(0.85 inch)
Hoisting speed		0.663,1.09,1.693,2.90,1.761,3.034,4.713,8.803m/s (2.17,3.58,5.55,9.51,5.78,9.95,15.46,28.87 feet/s)
Electromotor model		Y2-280M-4
Electromotor output		90 kw(122HP)
Electromotor rotation rate		1480 r/min
Diesel engine model		Cummins 6BTA5.9-C180
Diesel engine output		132 kw(180HP)
Diesel engine rotation rate		1900 r/min
Dimensions		With electromotor 3905×1692×2603 mm (153.7×66.6×102.5 inch)
Dimensions(transport)		With diesel engine 4105×1892×2803 mm (161.6×74.5×110.4 inch)
Weight		8200 kg(18080 lb)

Related Products:

Certificate

Customer Visting

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.

FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would
be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
