    Multifunctional Exploration Drilling Equipment Small Compact Structure

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : XY-1/XY-1A/GL200/GL250/GL300
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Multifunctional Exploration Drilling Equipment Small Compact Structure

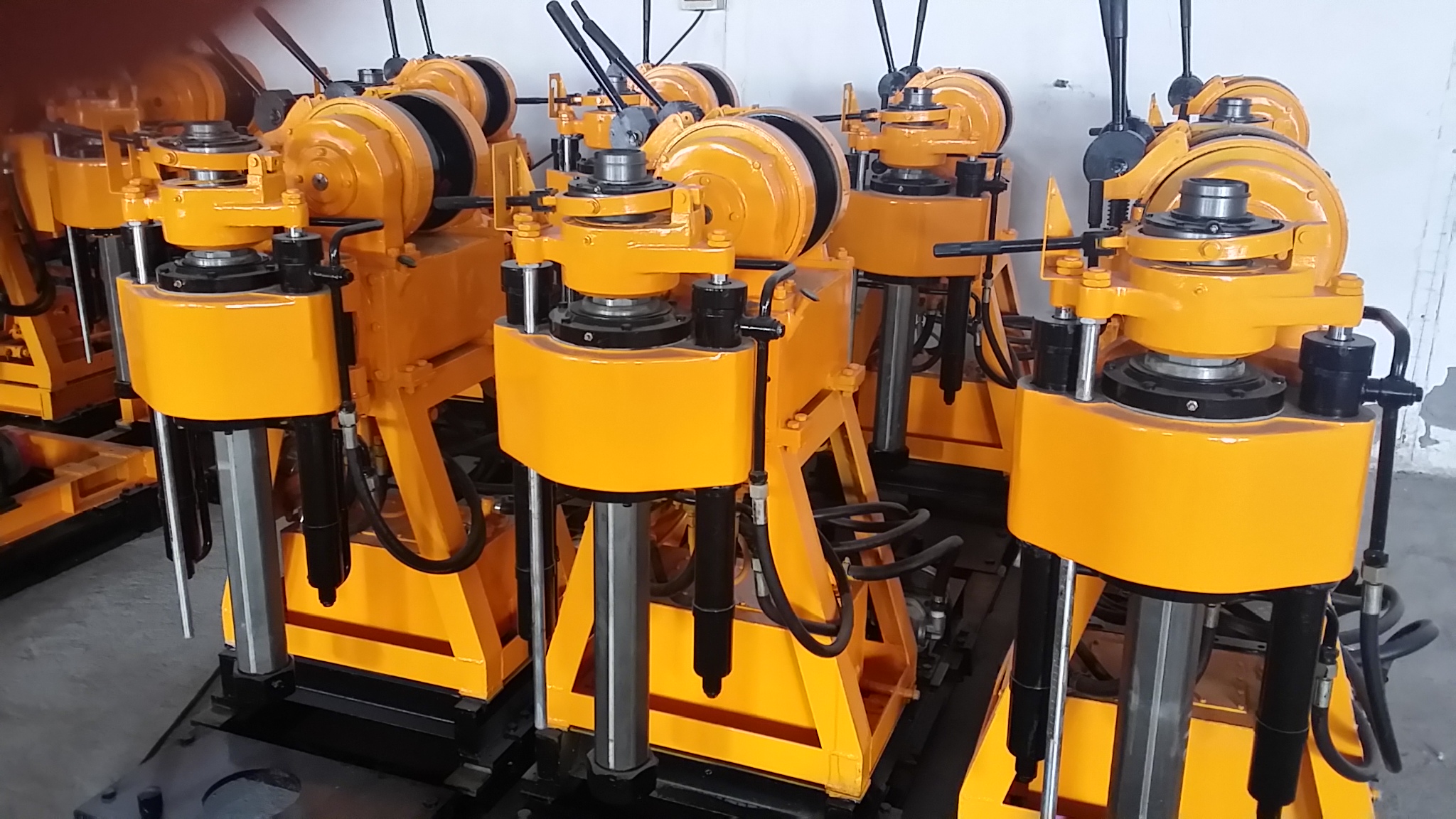

    XY-1/XY-1A/GL200/GL250/GL300 Small Compact Structure Easy Operation Exploration Drilling Rigs


    ABOUT XY-1/XY-1A/GL200/GL250/GL300 DRILL RIG:

    XY-1/XY-1A/GL200/GL250/GL300 core drilling rig can be mounted on trailer chassis or crawler chassis according to clients requirement.

    There are small mud pump on the rigs, for drilling big hole or deep hole, clients normally choose bigger mud pump such as BW160, BW160/10 and BW250 for better performance.

    We can provide customized services, please send us your specific needs, we will provide the most suitable core drilling rig according to your needs.


    Tehnical Parameter:


    ModelsXY-1XY-1AGL200GL250GL300
    DrillDrilling depth100m100/180 m250m250m300m
    Initial hole dia110mm150mm200mm200mm200mm
    Final hole dia75mm75mm75mm75mm75mm
    Drill rod dia42mm43mm50mm50mm50mm
    Angle range75°-90°75°-90°75°-90°75°-90°75°-90°
    Dimensions(L×W×H)1640×1030×1440 (mm)1620×970×1560(mm)1700×1030×1270 (mm)1700X1030X1270(mm)1070×1030×1270 (mm)
    Swivel HeadSpindle stroke450mm450mm450mm450mm450mm
    Spindle lifting capacity max25KN25KN30KN30 KNmax 45 KN
    HoistMax .lifting capacity(single rope)10KN15KN20/40/90/18020KN20KN
    Powerdiesel engineModelS1100A2S1100A2L28NL28NL28N
    Rated power10.3KW10.3KW16.2KW20KW20KW
    Rated speed2000r/min2200r/min2200r/min2000r/min2000r/min
    motorModelY132M-4Y160M‐4Y160L-4Y160L-4Y160L-4
    Rated power7.5kW11KW11KW15KW15KW
    Rated speed1440r/min1460r/min1460r/min1440r/min1440r/min
    Related Products:
    We can supply full set of drilling tools as per your requirements.

    Company Profile

    Glorytek Industry (Beijing)Co.,Ltd.,

    We have extensive experience supplying small core drilling rigs. These drilling rigs are widely used in geological exploration, metal exploration, water well drilling and other projects. Our factory has a complete quality inspection team, mature production lines and experienced engineers. So far, we have established stable and long-term cooperative relationships with customers in more than 60 countries.
    FAQ
    1. Q: What is your warranty terms?
    A: The main parts of the core drill rig has one year warranty if the damage is caused by quality issue. Timely after-sale assistance shall be provided all the time.
    2. Q: How many days does the production take?
    A: normally it takes 15-25 days for production. Sometimes we have finished machine in stock.
    3. Are you manufacturer?
    A: Yes. We are professional manufacturer, meanwhile, we have our own trading team as well.
