    Coring Exploration Drilling Rigs Small Size Light Weight For Prospecting

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : XY-1/XY-1A/GL200/GL250/GL300
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Coring Exploration Drilling Rigs Small Size Light Weight For Prospecting

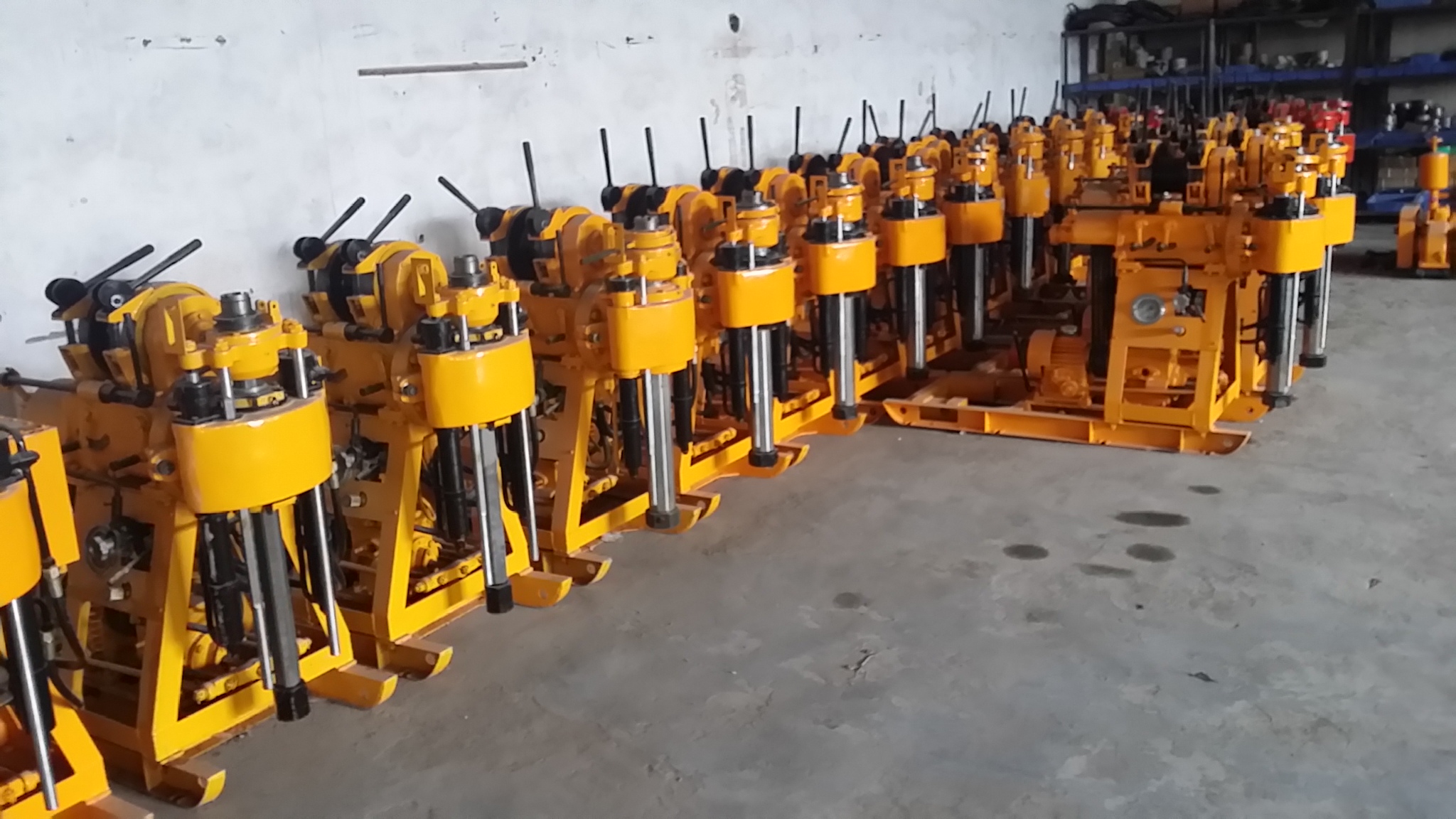

    XY-1/XY-1A/GL200/GL250/GL300 Small Size Light Weight Shallow Coring Exploration Drilling Rigs


    ABOUT XY-series DRILL RIG:

    XY-1/XY-1A/GL200/GL250/GL300 drilling rig are widely used for prospecting and exploration, mineral exploration and SPT service,borehole drilling projects.
    They are compact in structure, small in size, light in weight and convenient in transportation.

    XY-1/XY-1A/GL200/GL250/GL300 drilling rig has have the advantages of compact structure, low price and easy operation. Welcome contact to know more about these core drill rigs.


    Tehnical Parameter:


    ModelsXY-1XY-1AGL200GL250GL300
    DrillDrilling depth100m100/180 m250m250m300m
    Initial hole dia110mm150mm200mm200mm200mm
    Final hole dia75mm75mm75mm75mm75mm
    Drill rod dia42mm43mm50mm50mm50mm
    Angle range75°-90°75°-90°75°-90°75°-90°75°-90°
    Dimensions(L×W×H)1640×1030×1440 (mm)1620×970×1560(mm)1700×1030×1270 (mm)1700X1030X1270(mm)1070×1030×1270 (mm)
    Swivel HeadSpindle stroke450mm450mm450mm450mm450mm
    Spindle lifting capacity max25KN25KN30KN30 KNmax 45 KN
    HoistMax .lifting capacity(single rope)10KN15KN20/40/90/18020KN20KN
    Powerdiesel engineModelS1100A2S1100A2L28NL28NL28N
    Rated power10.3KW10.3KW16.2KW20KW20KW
    Rated speed2000r/min2200r/min2200r/min2000r/min2000r/min
    motorModelY132M-4Y160M‐4Y160L-4Y160L-4Y160L-4
    Rated power7.5kW11KW11KW15KW15KW
    Rated speed1440r/min1460r/min1460r/min1440r/min1440r/min

    Company Profile

    Glorytek Industry (Beijing)Co.,Ltd.,

    We have extensive experience supplying small core drilling rigs. These drilling rigs are widely used in geological exploration, metal exploration, water well drilling and other projects. Our factory has a complete quality inspection team, mature production lines and experienced engineers. So far, we have established stable and long-term cooperative relationships with customers in more than 60 countries.
    FAQ
    1. Q: Can the logo or company name to be printed on the products or package?
    A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
    2. Q: Can I mix different models in one container?
    A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
    3. Q: How does your factory do regarding quality control?
    A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
