    75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : XY-3
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 50 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered

    XY-3 Shallow Medium Depth Diamond Coring Exploration Drilling Rigs with Drilling Tools


    ABOUT XY-3 DRILL RIG:

    Feature:
    The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.
    The rig’s spindle inner diameter is 96mm, driven by mechanical system, can output big torque. The winch can lift max. 3000kg with single line.
    The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
    Spindle and winch can be operated separately.
    Spindle borehole is of big inner diameter, able to change big hexagonal drilling rod.


    Usage:
    Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.

    Tehnical Parameter:


    XY-3 Technical parameter
    Drilling depth100,250, 300, 600m
    Corresponding end hole diameter300,200, 150, 75mm
    Max. open hole dia.300mm
    End hole dia.75mm
    Drilling Rod diameter60mm
    Drilling angle90°~65°
    Machine Dimension(without chassis)2500x 900 x 1800mm
    Drill weight (without chassis)2100kg
    Machine Dimension(crawle type)5300x2120x2780mm
    Drill weight (crawler type)4600kg
    Spindle
    Spindle speedForward Low speed 30,53,88,145,222r/min
    Forward High speed 143,250,414,684,1050r/min
    Reverse 29, 137r/min
    Spindle stroke600mm
    Spindle inner diameter96mm
    Lifting capacity6000kg
    Winch
    Max.Single line lifting capacity3000kg
    Max.Single line lifting speed0.5-1.9m/s
    Wirerope caliber12.5mm
    Roller capacity50m
    Reel diameter300mm
    Hug folldgate belt width90mm
    Gear Oil pump
    Duplex gear oil pumpCBF-F63/25
    Front Displacement, pressure63 L/min 20Mpa
    Behind Displacement, pressure25 L/min 20Mpa
    Power unit
    Diesel engine YN2742kW(max 56kW)
    Rated Speed2400r/min

    Company Profile

    We supply different types of core drill rig with good performance.



    Delivery:

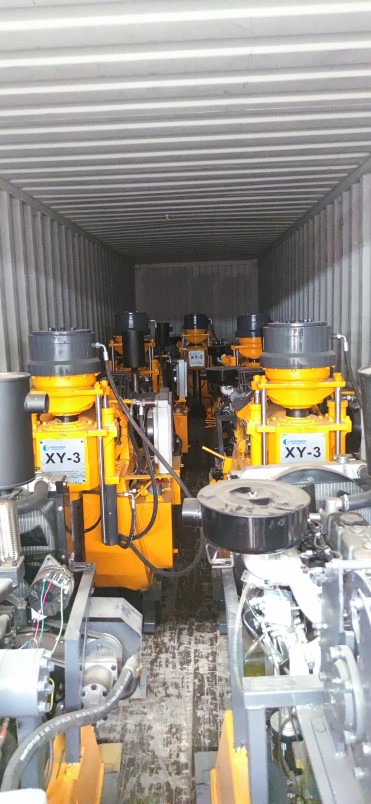

    Packing: Seaworthy Packing

    Delivery: about 30 days after your down payment.


    FAQ:

    Q1. What is your warranty policy?
    A: We can supply one year warranty or 2000h for our machines. We can provide internet or calling service at any time.

    Q2. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery

    Q3: How do you make our business long-term and good relationship?
    A:1. We trust "win-win situation", because we pay attention to ensure our customers benefit.
