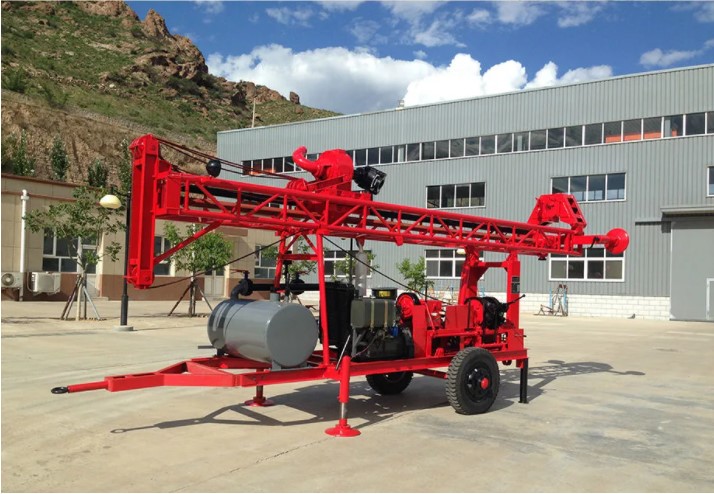

Portable 200m Two Wheels Trailer Type Water Well Dril Rig For
Borehole Drilling
Description:
GL-II trailer drilling rig is suitable for:
Drilling of drinking water wells in towns and villages
Agricultural irrigation water drilling
Well drilling for industrial and other water use
Engineering construction such as high-rise buildings, bridges,
geological mines, ports, dams and other foundation pile drilling
Ground source heat pump well drilling
Exploration and geological census drilling
This model can be pulled and moved by tractors such as tractors,
cars, etc. It is convenient and quick to move, which brings
convenience to construction. Equipped with hydraulic lifting tower
device to make the lifting tower more convenient.
The standard configuration of the drilling rig is a diesel engine
as the drive, and a three-phase AC generator set can also be
selected according to the user's requirements. It can be powered by
a diesel engine or an external power supply to realize the
dual-power drilling operation of "dual use of diesel and
electricity".
This model is a mature product developed by our factory for many
years, with stable and reliable performance, and is well received
by domestic and foreign customers.
This model can use mud drilling and air drilling technology, and is
suitable for the construction of clay layer, sand layer and rock
layer.
This type of drilling rig has large torque, large lifting force,
strong power, simple operation, and convenient and quick loading
and unloading of drill pipes. Low investment and high efficiency.
Tehnical Parameter:
Item |
GL-II Trailer Mounted Water well drill rig |
Hole Diameter (mm): |
90-1200 |
Hole Depth (m): |
150 |
Run of Rod (m): |
3 |
Drill Rod Diameter (mm): |
φ60,φ73,φ89,φ95,φ133 |
Drill Head Inside Diameter (mm): |
φ35,φ60,φ81,φ120 |
Rig Mass (kg): |
3400 |
Drilling Technology: |
Normaland Reverse Circulation for Both Mud and Air |
Down-The-Hole Hammers: |
Middle-High-Pressure Air |
Drill Head Lifting Speed (m/s): |
0.25 0.15 |
Drill Head Lifting Force(kN): |
55.4 94.55 |
Feed Thrust (kN): |
0-15 |
Drill Head Spin Speed (r/min) : |
A(Forward:13-22-48, Reverse:10-17-36) |
B(Forward: 48-84-184, Reverse: 37-65-142) |
Main Hoist Lifting Force (kN): |
18.54 |
Pump: |
LBN-20Normaland Reverse Circulation Pump Group |
Flow (m3/h): |
80 |
Power Unit: |
Diesel Engine |
Power(Kw): |
40 |
Mast Up and Down: |
Mechanical type |
Chassis: |
Trailer with two wheels |
Dimensions(mm): (L-W-H) |
Working Conditions: 4910*2020*6650 |
Transport status: 6700*2020*2750 |
Related products
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would
be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
