Borehole Water Well Drill Rig 600m Truck Mounted With Mud Pump

Ask Lasest Price
Brand Name :	Glorytek
Model Number :	C600HW
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :	20sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Borehole Water Well Drill Rig 600m Truck Mounted With Mud Pump

Truck Mounted Water Well Drilling Rig Borehole 600m Water Well Drill Rig with Mud Pump

Description:

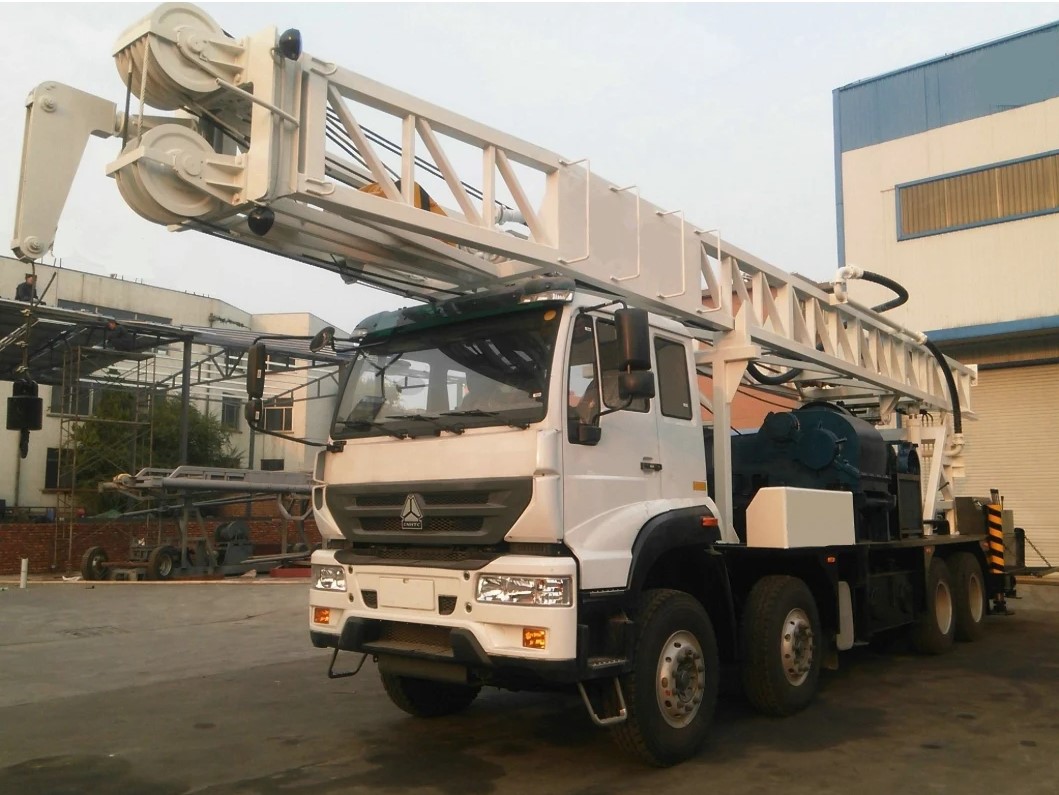

C600HW truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

The truck chassis adopts the special rig chassis of brand SINO-TRUK 8X4.

The main drive system, the transfer case, gearbox, double-winch unit, mud pump, rotary table, drilling tower, feed mechanism are set up on the chassis.

This rig is a rotary drilling rig with directional circulation.

It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

C600HW truck water well drill rig is rotary table type, it can drill with air compressor and also mud pump. We can supply air compressor, dth hammer, dth bits, drill pipe, drill collar, tricone bit, pdc bit, soil bit etc. to work with it while drilling.

Tehnical Parameter:

Open hole diameter	500mm
Drill depth	600m
Kelly:	108×108×7500 ( or 10500)mm
Drill pipe	Φ89×5500(6000or 9000)mm
Mast height	12500mm (or 16232mm)
Mast efficient height	11800 (or 15255mm)
Max-loading of mast	36t
Main hook rated load	32t
Vice hook rated load	25t
Main winch single rope lifting capacity 50kN; rope capacity 120m
Vice winch single rope lifting capacity 50kN;rope capacity 120m
steel wire specification	Φ18NAT6×37+NF1770
Rotarytable inner diameter	500mm;
Diesel engine:	DONGFENG CUMMINS 6BTA5.9-C180-In-line six cylinder water cooled water cooled four stroke turbocharged intercooled diesel engine,Related power 132kW/2200rpm, MAX torque 750N.m/1600rpm;
Diesel engine:	When drilling the CUMMINS output rotate speed 1300r/min
Rotarytable speed
Speed of main drive shaft	980r/min
DONGFENG gearbox gear in	sixth gear, fifth gear, forth gear, 3rd gear, 2nd gear,1st gear, reverse gear
Rotated speed	132;115;67; 43; 25;14;18(r/min);
Rotarytable torque	7.4----52(kN.m)
Gear oil	CB-HP80/50/32
Displacement:	80ml/r ;50ml/r;32ml/r
rated working pressure	20Mpa
highest pressure	25 MPa
Hydraulic radiator
Model	FLJ-45
voltage	24V
Hydraulic heater
voltage	220V
power:	1.5KW*2
mud pump
Model: 3NB-130	Type: Horizontal three - cylinder single acting piston pump
input power kW(HP)	90(130)
rated displacement l/min	1000
rated input rotate speed r/min	565
rated pressure MPa	5
Chassis
SINOTRUCK HOWO drive form 8x4 336HP
Dimension:
working size (LxWxH):	11122×2490×17463mm
Transportation size(LxWxH):	1250025004200mm

Customer Visting

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.

FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would
be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
