XY-1/XY-1A/GL200/GL250/GL300 four Wheel Trailer water well Drill Rig

XY-1/XY-1A/GL200/GL250/GL300 four Wheel Trailer water well Drill Rig

Description:

XY-1/XY-1A/GL200/GL250/GL300 small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc.

Drilling dia. will from 50-200mm or larger according to clients requirement.

Different layer condition will need different bits, soil or soft layer will need clay bit, or ally bit, drag bit, for hard rock will need diamond bit, tricone bit etc.

with oil pressure automatic feed mechanism, it can improve drilling efficiency and reduce workers' physical work.

Light weight and easy decomposition to quick to move, so it is applicable to plains and mountainous areas.

Tehnical Parameter:

Specifications			Models
Specifications			XY-1	XY-1A	GL200	GL250	GL300
Drill		Drilling depth	100m	100/180 m	250m	250m	300m
		Initial hole dia	110mm	150mm	200mm	200mm	200mm
		Final hole dia	75mm	75mm	75mm	75mm	75mm
		Drill rod dia	42mm	43mm	50mm	50mm	50mm
		Angle range	75°-90°	75°-90°	75°-90°	75°-90°	75°-90°
		Dimensions(L×W×H)	1640×1030×1440 (mm)	1620×970×1560 (mm)	1700×1030×1270 (mm)	1700X1030X1270 (mm)	1070×1030×1270 (mm)
		Weight(without power unit)	500kg	620kg	580kg	580kg	750kg
Swivel Head		Spindle stroke	450mm	450mm	450mm	450mm	450mm
Swivel Head		Spindle lifting capacity max	25KN	25KN	30KN	30 KN	max 45 KN
Hoist		Max .lifting capacity(single rope)	10KN	15KN	20/40/90/180	20KN	20KN
Power	diesel engine	Model	S1100A2	S1100A2	L28N	L28N	L28N
		Rated power	10.3KW	10.3KW	16.2KW	20KW	20KW
		Rated speed	2000r/min	2200r/min	2200r/min	2000r/min	2000r/min
	motor	Model	Y132M-4	Y160M‐4	Y160L-4	Y160L-4	Y160L-4
		Rated power	7.5kW	11KW	11KW	15KW	15KW
		Rated speed	1440r/min	1460r/min	1460r/min	1440r/min	1440r/min

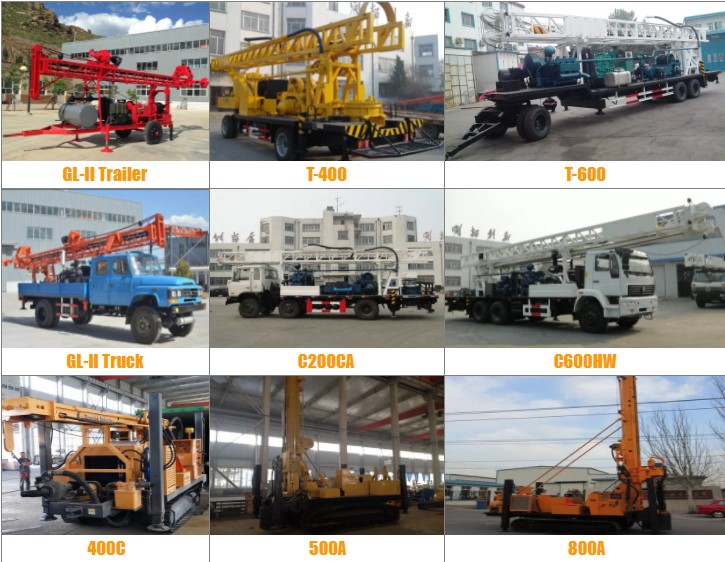

Related products

Customer Visting

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.

FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would
be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
