260A 300m Compact Structure Light Weight Drill Rig Machines with
Crawler Chassis
Description:

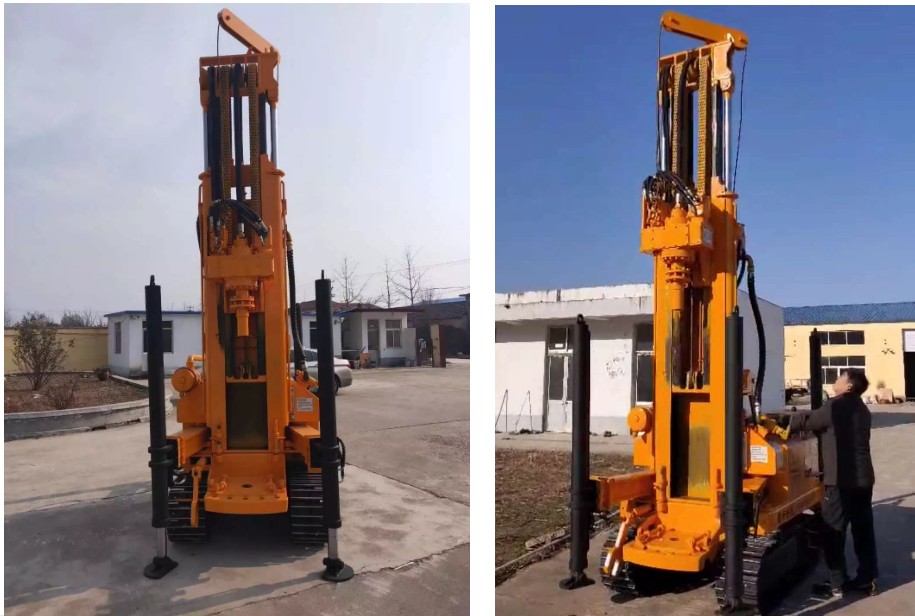

The protruding features of this machine are compact structure,
small size and light weight, which is very suitable for the home
garden and other sites with relatively small working space. In
particular, the width is narrow, and this drill can freely travel
through a relatively narrow space. It is relatively light in weight
and has a tracked chassis and hydraulic outriggers to assist in
transport.
Usually this machine is used for air hammer drilling, which is
efficient and requires less drilling time. Welcome customers in
need to contact us for more information.
Tehnical Parameter:
| Technical Parameter |
| Hole Diameter: | 300(mm) |
| Hole Depth: | 300(m) |
| Drill Rod Diameter: | φ76 φ89 φ102(mm) |
| Power : | 76(kW) |
| Gear pump : | 50/50/25 |
| Chassis : | steel crawler |
| Drill Head Motor : | HMV8K500 |
| Drill Head Torque : | 10000(N·m) |
| Drill Head Stroke : | 3.6m |
| Drill Head Lifting Force : | 18ton, with winch |
| Dimensions(L-W-H) : | 2100x1250x1950(mm) |
| Transport Status(L-W-H) : | 2800x2500x1400(mm) |
| Rig Mass : | 5000(kg) |
Main Application
◆ Drilling wells for urban and rural life◆ Drilling wells for agricultural irrigation and industries
◆ Drilling for geotechnical survey
◆ Drilling construction engineering holes
◆ Drilling geothermal pump wells
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in
manufacturing and exporting top quality drilling equipment and
drilling parts for decades. We are supported and assisted by a
highly experienced team of designers and engineers that enable us
to complete all the assigned projects successfully as per the
specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project,
side slope protection engineering, oil and gas engineering,
underwater rock drilling & blasting operations of seaport channel,
hydropower project, national defense projects ect.
We have strict quality control team to ensure that we can supply
high performance drilling rigs.
We have cooperative customers in more than 60 countries around the
world. Our machines support their local engineering well. We have
been supplying drilling equipment and drilling tools
Related drilling products:
Besides the drilling rig machine, we can also supply other drilling
equipment and drilling tools for borehole drilling projects, such
as air compressor, mud pump, drill rods, DTH hammer and bit,
tricone bit, drag bit, adaptors, etc.
