Rotary Truck Mounted Drilling Machine Multifunctional 400m 6X4

Ask Lasest Price
Brand Name :	Glorytek
Model Number :	C400ZY
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :	20sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Rotary Truck Mounted Drilling Machine Multifunctional 400m 6X4

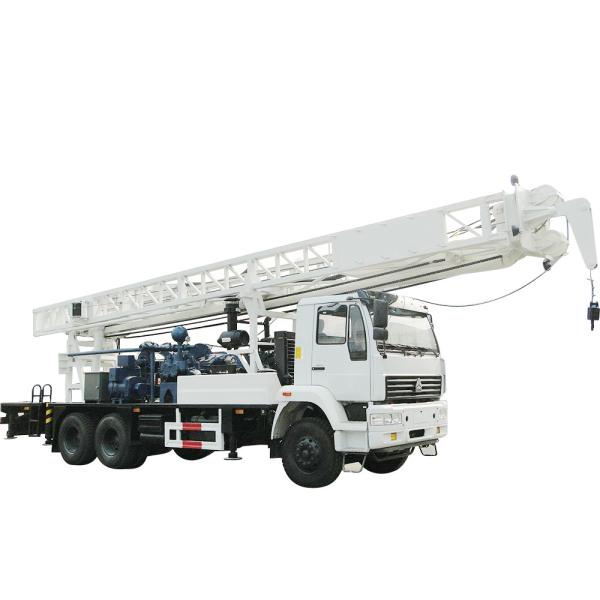

C400ZY 400m 6X4 Truck Mounted Rotary Table Water Well Drill Rig

Description:

C400ZY truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.

The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.

This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

Tehnical Parameter:

Technical parameter
Drilling depth(M)		80	400
Drilling diameter(mm)		1500	500
Speed of turntable(r/min)		21.2;36;63.2;100.6;155;20.2(reverse)
Torque of turntable(KN.m)		18;10.6;6;3.8;2.5;18.9(reverse)
Single rope lifting capacity of main windlass(KN)		45
The capacity of main windlass(KN)		270
Single rope lifting capacity of hydraulic windlass(KN)		40
The capacity of hydraulic windlass(KN)		160
The lifting capacity of hook(KN)		270
Bearing capacity of mast (KN)		270
The height of mast (mm)		11500
Bearing capacity (t)		30
Pipe	Kelly (mm)	108×108×7500
	Assistant pipe (mm)	Ф89×10×5500
Hydraulic pump	Model	CB-HP80/40
	Pump delivery (ml/r)	80/40
	Rated speed (r/min)	2000
	Rated pressure(MPa)	20
BW850/2A plunger pump	Diameter of cylinder (mm)	150
	Stroke of piston (mm)	180
	Theory of flow (L / min)	600 850
	Rated pressure (Mpa)	3 2
	Pounding times (min-1)	58 82
	Diameter of suction tube (mm)	127
	Diameter of drain pipe (mm)	64
	Input speed (r / min)	470
	Input power (kw)	40
	Overall dimensions (mm)	200010301400
	Weight (t)	1.5

Customer Visting

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional
manufacturer and supplier of drilling equipment and drilling tools
with over 20 years experience. We are supported and assisted by
highly experienced R & D team and engineers that enable us to
complete all the assigned projects successfully as per clients’
requirements.
Glorytek Drill is one of the most important member of “Sundrill
Corporation”.Our factory covers an area of 250,000 square meter,
construction area is about 150,000 square meter, having machining
machinery, CNC processing center, friction welding machine, testing
equipment etc. over 200 sets and more than 600 employees.Our
products have been exported more than 60 countries around the
world.

FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling
depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing
and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is
about 25-30 days after receiving payment, the drilling tools would
be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the
quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
