Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth

Glorytek Industry (Beijing) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth from wholesalers

    Buy cheap Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth from wholesalers
    • Buy cheap Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth from wholesalers
    • Buy cheap Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth from wholesalers
    • Buy cheap Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth from wholesalers
    • Buy cheap Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth from wholesalers

    Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL-ⅡA
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 40sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

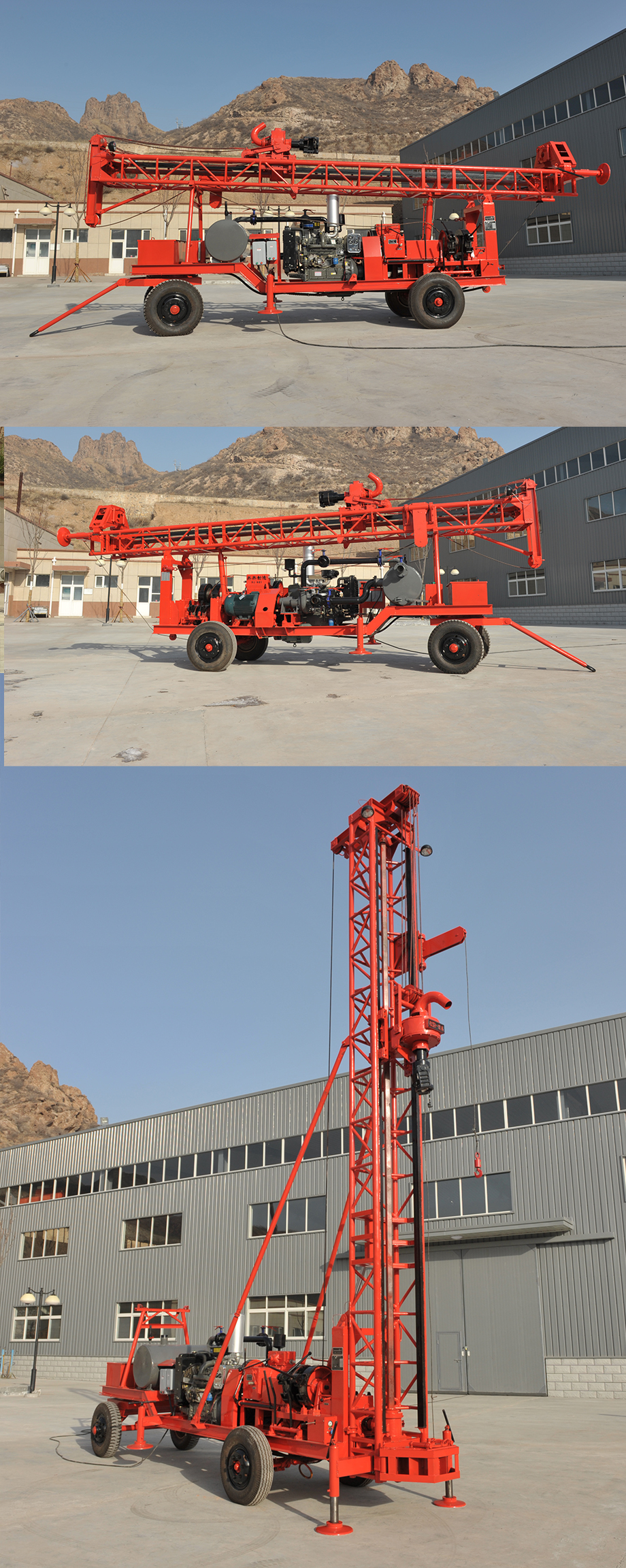

    Trailer Type Mud Rotary Drilling Rig , Mobile Borehole Drilling Machine 400m Depth

    GL-ⅡA Trailer Type Air Drilling Mud Rotary Drilling Water Well Drill​ Rig for 400m Borehole Drilling

    Description:
    GL-ⅡA Trailer Type Air Drilling Mud Rotary Drilling Water Well Drilling Rig is mainly used in industrial and agricultural water conservancy projects, test wells, and another exploration drilling. In particular, geothermal heating drilling can also meet various projects of engineering foundation reinforcement, loose gravel drilling, and rock formation connection.
    Our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have comprehensive cost-effectiveness. Welcome to contact us and discuss with more details.

    Tehnical Parameter:

    Drilling Parameter
    Hole diameter:90--1200(mm)
    Hole depth:400(m)
    Run Of Rod :3,4(m)
    Drill rod diameter:φ73 φ89 φ95 φ133(mm)
    Drilling Technology:Normal and Reverse Circulation for both Mud and Air
    Down-The-Hole hammers:Middle-High-Pressure Air
    Performance Parameter
    Drill Head Inside Diameter :Φ60 φ80 φ120
    Drill Head lifting speed(m/s):0.37 0.16
    Drill Head lifting Force(T):18T
    Drill Head Spin Speed:A(Forward:14-23-52-84,Reverse:8-13-29-47r/min)
    B(Forward:32-52-116-188,Reverse:18-29-65-106r/min)
    Shape Parameters
    Dimensions:(L-W-H) Working conditions 5300×2000×7200(mm)
    Transport status:(L-W-H) 7900×2000×3000(mm)
    Supporting Form:Mechanical Screw
    Mast Up-Down:Hydraulic Type
    Rig mass:3800(Kg)
    Chassis:Trailer with four wheels
    Power Unit:Diesel Engine
    Power:49(kW)
    Pump:LBN-20 Normal and Reverse Circulation Pump Group
    Flow(m³/h):80
    Main Hoist Lifting Force:3T
    Feed Thrust:2T
    Notes: Drill head spin speed can be selected, A is normal






    Company Profile


    Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

    We have been supplying drilling equipment and drilling tools for 20 years. Our products are exported to more than 60 countries. We have mature production lines and strict quality control team. In addition to various drilling rigs, we can also provide mud pumps, air compressors, drilling tools and other drilling products.
    FAQ:

    1. Q: What kind of terms of payment can be accepted?
    A: Normally we can work on T/T or as per customers' requirements.
    2. Q: Are you manufacturer?
    A: Yes, we are the manufacturer.
    3. Q: What about the delivery time?
    A: 20 days after receiving the deposit.
    4. Q: What about the warranty time?
    A:12 months after shipment if the problem is caused by quality issue, the engine is 6 months.
    5. Q: What about the Minimum Order Quantity?
    A: The MOQ is 1 set.
    6. Q: Could you stick customers' brands on the products?
    A: We warmly welcome the OEM orders.



    Related drilling products:

    Besides the drilling rig machine, we can also supply other drilling equipment and drilling tools for borehole drilling projects, such as air compressor, mud pump, drill rods, DTH hammer and bit, tricone bit, drag bit, adaptors, etc.
