    Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL350S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 40sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Industrial Borehole Water Well Drill Rig Fully Hydraulic For 350m Drilling

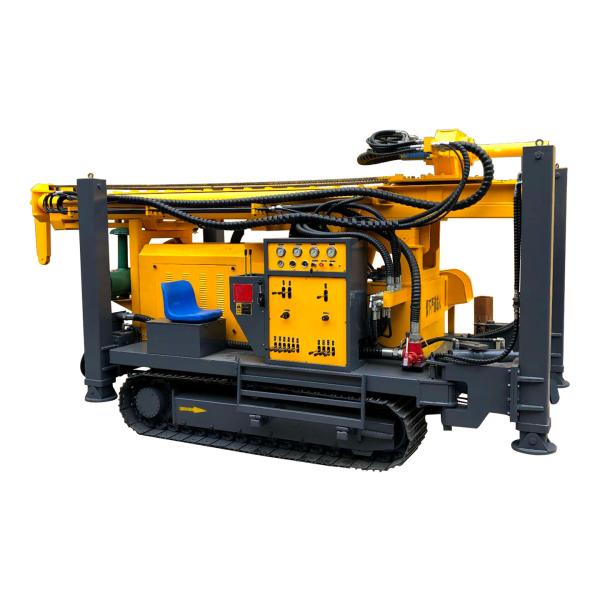

    GL350S Fully Hydraulic Tracked Borehole Water Well Drill Rig for 350m Drilling


    Description:

    GL350S crawler drilling rig is a new model independently developed and produced by our factory on the basis of drawing on the advanced technology of similar models at home and abroad.
    The main accessories of the drilling rig adopt the policy of optimizing procurement at home and abroad, and the diesel engine, hydraulic pump, main valve, motor and key hydraulic accessories are all selected from well-known brand products.
    The large torque, high power configuration, reasonable structure design and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig.


    Tehnical Parameter:


    Technical Parameter
    Max drilling depth350m
    Drilling diameter105-325mm
    Air pressure1.25-3.5Mpa
    Air consumption16-55m³/min
    Rod length3m/6m
    Rod diameter76/89/102mm
    Main shaft pressure6T
    Lifting force26T
    Fast lifting speed24m/min
    Fast forwarding speed50m/min
    Rotary torque9900 N.M
    Rotary speed30/170r/min
    Winch lifting force1.5T
    High leg stroke1.5m
    Drilling efficiency10-35m/h
    Moving speed2.5Km/h
    Uphill angle21°
    Weight of the rig8.5T
    Dimension5.9m x 1.8m x 2.3m
    Working conditionloose layer or bedding rock
    Drilling method

    Top Hammer Hydraulic Rotating and feeding,

    Down the hole hammer or mud pump drilling

    Suitable hammerMedium and high pressure DTH hammer
    Optional accessoriesMud pump, centrifugal pump, generator, foam pump
    Diesel Engine90KW


    Company Profile


    Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

    Our drilling rigs are good in appearance, compact in structure, reliable in performance and flexible in operation, and is currently the first choice for medium-sized projects in the crawler mounted drilling rig market;
    Our drilling rigs can drill in quaternary formations such as clay layer, sand layer, weathered rock, bedrock and so on. The drilling rig is mainly used for hydrogeological survey, drilling of industrial and agricultural water wells, etc., especially for the drilling of geothermal heating holes. It can be constructed by various techniques such as air drilling and foam rotary drilling.
