300m Borehole Water Well Drilling Rig Machine For Geological Exploration

Ask Lasest Price
Brand Name :	GLORYTEK
Model Number :	GL300
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :	50 sets/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

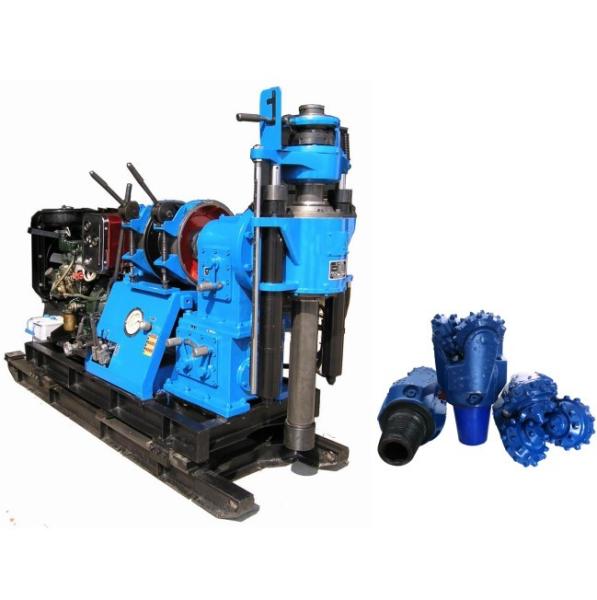

300m Borehole Water Well Drilling Rig Machine For Geological Exploration

GL300 Crawler Trailer Skid Type Borehole Drilling Rig for 300m Well Drilling

The GL300 Borehole Drilling Rig is designed to drill 300m deep wells. This machine is a mature product that has been widely used for decades. Usually our customers use it for geological exploration projects, private or industrial well drilling projects.

We have exported a large number of drilling rigs to India, Nepal, Europe and other countries and regions. Besides drilling rigs, we can also provide mud pumps and matching drilling tools. We can provide a one-stop service, you can buy the drilling rig and matching suitable drilling tools you need from us.

Tehnical Parameter:

Models			XY-1	XY-1A	GL200	GL250	GL300
Drill		Drilling depth	100m	100/180 m	250m	250m	300m
		Initial hole dia	110mm	150mm	200mm	200mm	200mm
		Final hole dia	75mm	75mm	75mm	75mm	75mm
		Drill rod dia	42mm	43mm	50mm	50mm	50mm
		Angle range	75°-90°	75°-90°	75°-90°	75°-90°	75°-90°
		Dimensions(L×W×H)	1640×1030×1440 (mm)	1620×970×1560(mm)	1700×1030×1270 (mm)	1700X1030X1270(mm)	1070×1030×1270 (mm)
Swivel Head		Spindle stroke	450mm	450mm	450mm	450mm	450mm
		Spindle lifting capacity max	25KN	25KN	30KN	30 KN	max 45 KN
Hoist		Max .lifting capacity(single rope)	10KN	15KN	20/40/90/180	20KN	20KN
Power	diesel engine	Model	S1100A2	S1100A2	L28N	L28N	L28N
		Rated power	10.3KW	10.3KW	16.2KW	20KW	20KW
		Rated speed	2000r/min	2200r/min	2200r/min	2000r/min	2000r/min
	motor	Model	Y132M-4	Y160M‐4	Y160L-4	Y160L-4	Y160L-4
		Rated power	7.5kW	11KW	11KW	15KW	15KW
		Rated speed	1440r/min	1460r/min	1460r/min	1440r/min	1440r/min

Features:

1. Good to drill 300m deep
2. The structure is compact with light weight
3. The cost is very cost-effective
4. The rig can be equipped with crawler or trailer chassis

Company Profile

300m Borehole Water Well Drilling Rig Machine For Geological Exploration

Glorytek Industry (Beijing)Co.,Ltd.,

We have extensive experience supplying small core drilling rigs. These drilling rigs are widely used in geological exploration, metal exploration, water well drilling and other projects. Our factory has a complete quality inspection team, mature production lines and experienced engineers. So far, we have established stable and long-term cooperative relationships with customers in more than 60 countries.

Contact

Jane Cheng

Tel: +86-10-52864265/52864786
Fax: +86-10-52037270
Mobile:+86-13426420230
