    350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL350S
    Certification : CE, SGS, TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 40sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    350m Depth Crawler Drill Machine Pneumatic Bore Hole With Full Hydraulic System

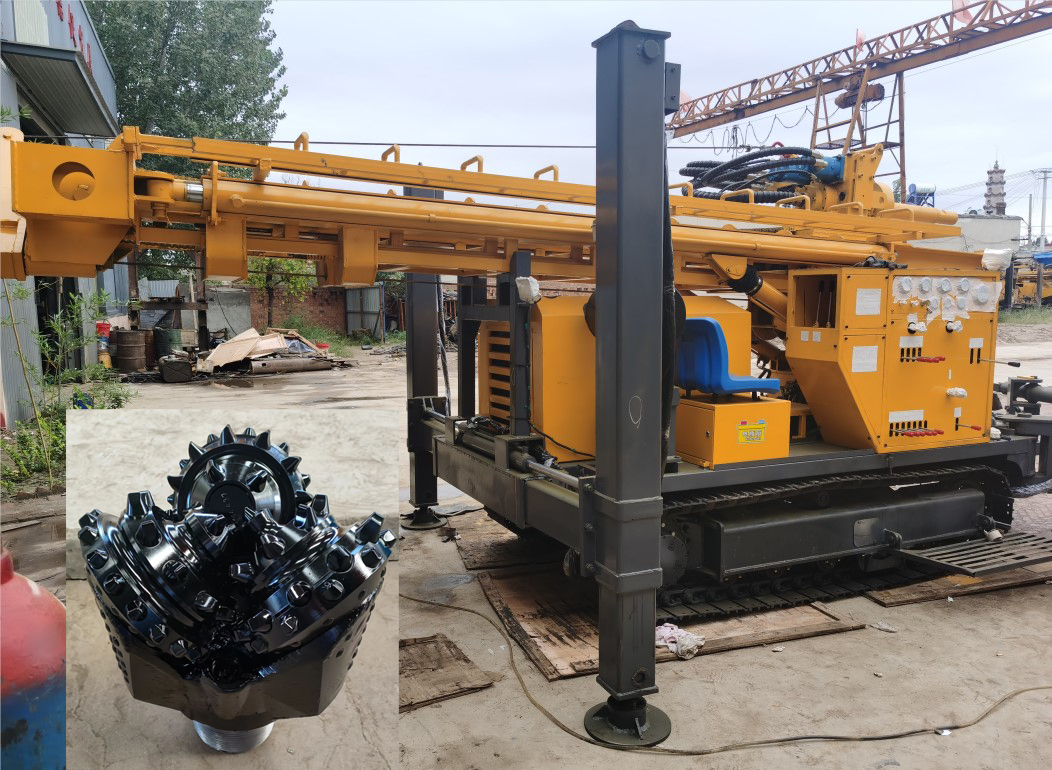

    GL350S 350m Depth Crawler Pneumatic Bore Hole Drill Rig Machines with Full Hydraulic System


    Description:

    GL350S 350m Depth Crawler Pneumatic Bore Hole Drill Rig Machines with Full Hydraulic System is our new model of water well drilling rig. This machine has full hydraulics and a durable track chassis, which makes this machine more efficient and durable and easy to operate. This drilling rig is usually suitable for air drilling, but if customers have special requirements, we can also customize drilling rigs with mud pumps for customers, so that this machine can be suitable for projects by mud drilling.


    We are a professional manufacturer of drilling rigs and drilling tools. Our technicians can recommend the most appropriate model according to the customer's project. We have mature production lines. Each machine will pass strict quality inspection before leaving the factory. We have information to become your reliable supplier. Welcome to order.


    Features:
    1. durable crawler chassis, which makes it more easy to move;
    2. full hydraulic system, which makes it more efficient;
    3. low cost, we are manufacturer of drill rig and our products are with factory wholesale price


    Tehnical Parameter:


    Technical Parameter
    Max drilling depth350m
    Drilling diameter105-325mm
    Air pressure1.25-3.5Mpa
    Air consumption16-55m³/min
    Rod length3m/6m
    Rod diameter76/89/102mm
    Main shaft pressure6T
    Dimension5.9m x 1.8m x 2.3m
    Working conditionloose layer or bedding rock
    Drilling method

    Top Hammer Hydraulic Rotating and feeding,

    Down the hole hammer or mud pump drilling

    Suitable hammerMedium and high pressure DTH hammer
    Optional accessoriesMud pump, centrifugal pump, generator, foam pump
    Diesel Engine90KW



    Company Profile


    Glorytek Industry (Beijing)Co.,Ltd., mainly supply and munufacture top quality drilling equipment and drilling parts. Our company is located in Beijing, China. We have professional production department and our own exporting team to deal with orders from worldwide clients for decades. We have our mature models of drilling rigs and drilling tools, which have been supporting our clients drilling projects very well. We also welcome clients who want to customized products.

    Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

    We have attended many exhibitions to showcase our products.
