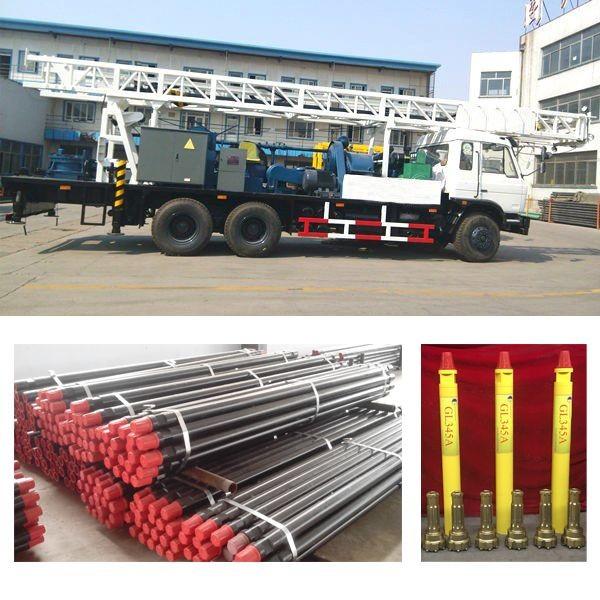

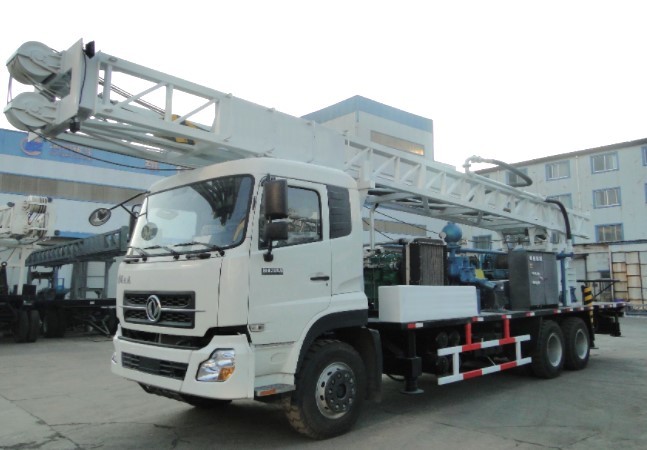

300m Compact Structure Truck Water Well Drill Rig Based on Dongfeng
6×4 Truck Chassis
Description:
300m Compact Structure Truck Water Well Drill Rig is based on
Dongfeng 6×4 Truck Chassis, the model number DFS1251GL18,
132kw/2500rpm with strong power, which meets China III emission
standard, and with 11.00R20 steel wire cross-country pattern tires.
It has good off-road performance, which can help you drill in
different formations.
Features:
1. Compact structure, based on 6×4 Truck Chassis
2. with strong power Yuchai YC6J180-33 diesel engine, emission of
China III, 132kw/2500rpm.
3. The drilling rig uses an independent diesel generator set as the
power when drilling, and the mechanical hoist and the turntable
work at the same time through the motor drive.
4. The drilling rig is equipped with mechanical double winches. The
main and auxiliary hydraulic winches have the characteristics of
large lifting force and fast lifting speed, which can meet the
needs of normal drilling and have the ability to deal with general
accidents in the well.
Tehnical Parameter:
| Nominal drilling depth (M) | 300 |
| Through hole diameter of turntable (mm) | 500 |
| Turntable speed (r/min) | 8.6-142 |
| Turntable torque (kN.m) | 38.9-2.4 |
| Single rope pulling force of main winch (kN) | 30 |
| Main hook lifting capacity (kN) | 240 |
| Single rope pulling force of auxiliary winch (kN) | 30 |
| Lifting force of secondary hook (kN) | 120 |
| Drill tower bearing capacity (kN) | 240 |
| Effective height of drilling tower (mm) | 11900 |
| Kelly rod (mm) | Φ108×108×7500 |
| Drill rod (mm) | Φ88.9×9.8×5500 |
| Power | Generator model | HH100/R6105AZLD-1 100kW |
| Main rig | Y225S-4 37kW/1470rpm |
| Mud pump | Y225S-4 37kW/1470rpm |
| Hydraulic pump | YE2-160M-4 11kW/1470rpm |
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., mainly supply and munufacture top quality drilling equipment and
drilling parts. Our company is located in Beijing, China. We have
professional production department and our own exporting team to
deal with orders from worldwide clients for decades. We have our
mature models of drilling rigs and drilling tools, which have been
supporting our clients drilling projects very well. We also welcome
clients who want to customized products.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project,
side slope protection engineering, oil and gas engineering,
underwater rock drilling & blasting operations of seaport channel,
hydropower project, national defense projects ect.
