    200m Crawler Drill Rig Full Hydraulic Rotary Dth Rock Borehole Air Hammer

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL-200S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 20sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    200m Crawler Drill Rig Full Hydraulic Rotary Dth Rock Borehole Air Hammer

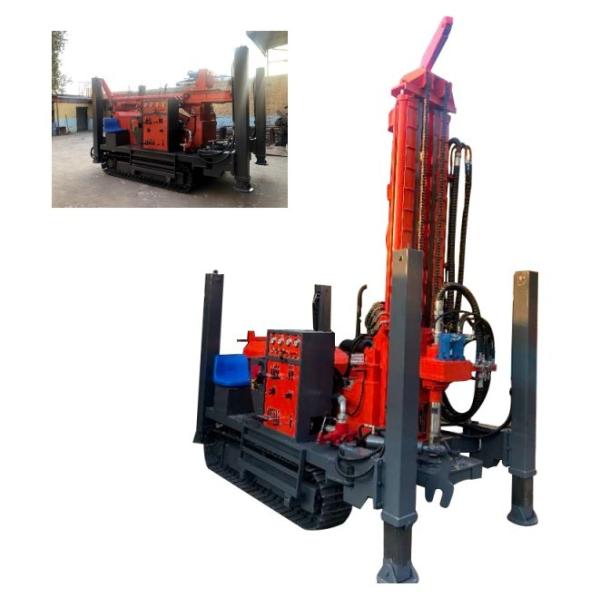

    200m Crawler Full Hydraulic Rotary DTH Rock Borehole Air Hammer Water Well Drill Rig

    Description:

    • GL-200S crawler water well rig is a highly-effective, energy-saving and multifunctional hydraulic drill and it is specialized in drilling well, monitoring well, geothermal air-conditioning hole drilling.
    • The GL-200S drill rig is hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push.
    • It is equipped with 1.5m high pressure hydraulic legs, easy to load on truck for transport.
    • Centralized control of the hydraulic control table, convenient operation.
    • Tracked chassis improves off-road performance.

    Tehnical Parameter:
    Max. Drilling Depth200m
    Drilling Hole Dia.90-315mm
    Working Pressure1.7-3.0Mpa
    Air Consumption17-35m3/min
    Drill Pipe Length3m
    Drill Pipe Dia.76mm/89mm
    Axial Pressure4T
    Lifting Force14T
    Fast lifting Speed35m/min
    Max.Rotation Torque4500-6500Nm
    Rotation Speed50-70r/min
    Working Hoist Lifting Force1.5T
    Mud Pump Flow Rate20L/min (optional)
    High Pressure Hydraulic Legs Stroke1.5m
    Drilling Efficiency10-35m/h
    Travel Speed2Km/h
    Grade ability30°
    Weight5.4T
    Dimension3.9x1.7x2.15m
    Diesel Engine77KW(Yuchai )
    Application formationloose layer or bedding rock
    Drilling MethodTop Hammer Hydraulic Rotating and feeding,
    Down the hole hammer or mud pump drilling

    Related products

    Customer Visting

    Company Profile

    Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
    Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.


    FAQ

    Q: How can we choose a suitable water well drill rig?
    A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


    Q: Are you a factory or a trading company ?
    A: We are an integrated corporation specialized in manufacturing and exporting.


    Q: What is your payment terms?
    A: We can accept T/T,L/C.


    Q:.What is your MOQ? How long is the delivery time?
    A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


    Q:. How long is the warranty?
    A: The guarantee period for mainframe is one year (excluding the quick wear parts).


    Q: Can we print my Logo on the products?
    A: Yes, we can. We support OEM .
