    Wholesale 6 1/2" Steel Body PDC Drill Bits for Oil/Gas Well Drilling

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : PDC drill bit
    Certification : CE,SGS,TUV
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pieces per month
    Delivery Time : 5-7 workdays
    • Product Details
    • Company Profile

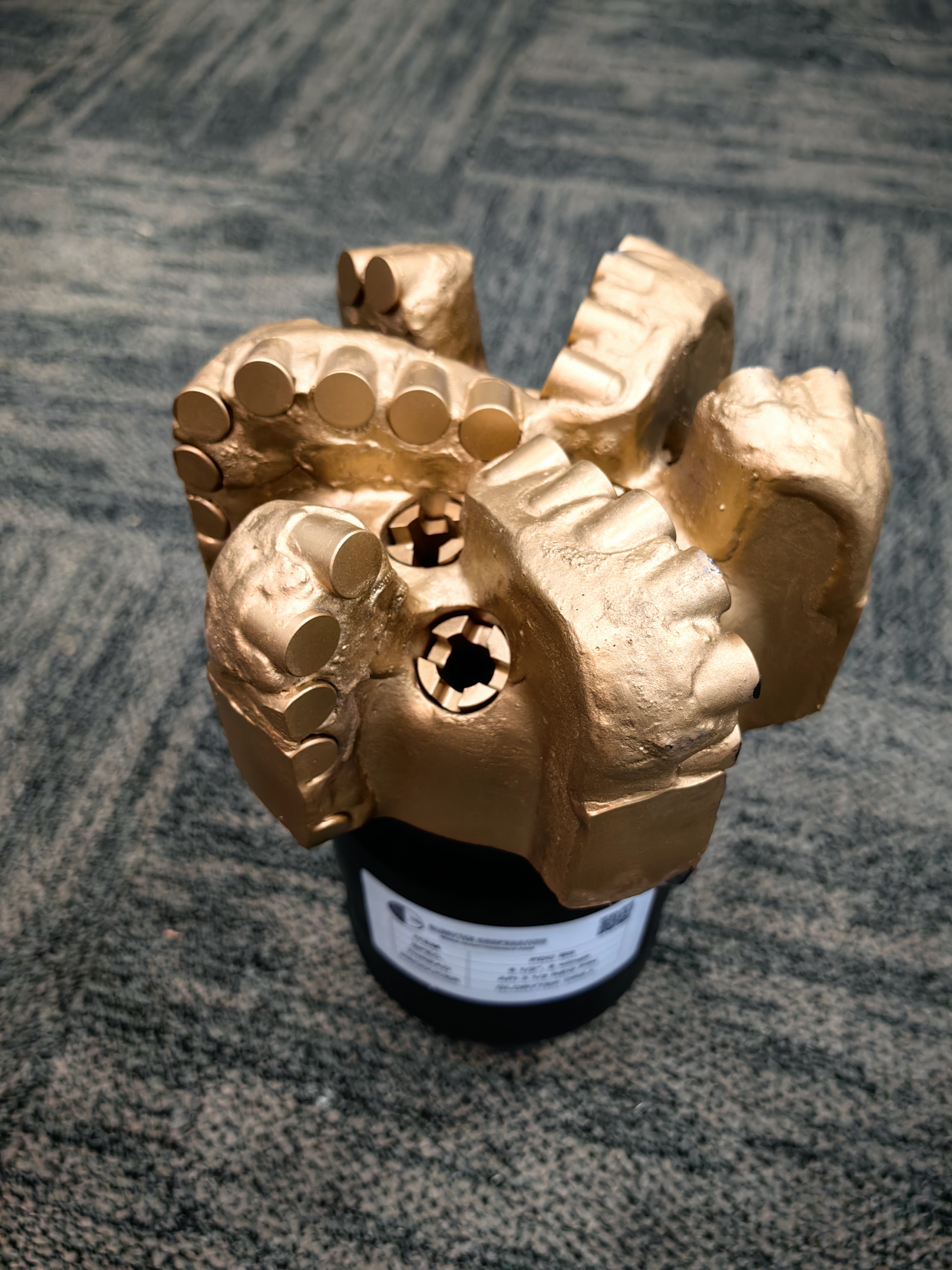

    Wholesale 6 1/2" Steel Body PDC Drill Bits for Oil/Gas Well Drilling

    Manufacturing Customization Support 6 1-2inch Matrix Body PDC Drill Bits for Well Drilling

    Detailed drawing



    1.
    Features of PDC Bit



    ● Better Durability
    Premium 6-level wing design is more durable than 3-level.
    Gage pads have tungsten carbide inserts for maximum wear resistance
    All cutters are premium quality to extend drill life and durability
    ● Asymmetric Force Balance Design
    Cutter layout is force balanced to drill precise round holes and reduce drill spin
    ● Thread Versatility
    Available in a variety of threads and sizes

    We are a PDC bits supplier. If you are interested in our products, please contact us now!


    2. Product Parameters

    Bit Type
    6"
    8-1/2"
    8-1/2"
    12-1/4"
    Bit Type
    17-1/2" GM1606T
    IADC Code
    M423
    M432

    M332
    M323
    M432 M332
    IADC Code
    M323
    Blade
    5
    6
    8
    6
    Blade
    6
    Cutter Size (mm)
    Φ13MM
    Φ16MM
    Φ13MM
    Φ16MM
    Cutter Size (mm)
    Φ16MM;Φ13MM
    Nozzle Qty/Type
    5
    13.2
    9.6
    30.78
    Cutter Qty
    Φ16×58;Φ13×81
    Nozzle Qty/Type
    3NZ
    6NZ
    4NZ
    6NZ
    Nozzle Qty/Type
    8NZ
    Gauge Length
    1.5"
    2.2"
    2"
    2.5"
    Gauge Length (mm)
    110
    Connection
    3-1/2" API REG
    4-1/2" API REG
    4-1/2" API REG
    6-5/8" API REG
    Connection
    7-5/8" API REG
    Make up Torque(KN.m)
    10.4~11.4
    24.1~26.5
    24.1~26.5
    51.7~56.9
    N.W./ G.W.(KG)
    338/388
    Rotary Speed(rpm)
    60-260
    60-260
    60-260
    60-260
    Nozzle Size (inch)
    10/32
    Weight on Bit(KN)
    8-50
    20-100
    20-100
    30-140
    Rotary Speed(Rpm)
    60-260
    Max.WOB(KN)
    90
    130
    130
    180
    Weight On Bit(KN)
    30-200
    Flow Rate(lps)
    10-30
    22-35
    22-35
    38-70
    Max.WOB (KN)
    240
    Flow Rate(lps)
    45-80
    Above are regular sizes for your reference. Size can be customized as per your requirement.

    3.Regular Size

    These (PCD) bits shear the rock with a continuous scraping motion and are very effective in shale (and other hard) formations, especially when used with oil-based muds.
    The most common sizes are 3 7/8" to 6 1/4",
    other sizes available upon request.



    4.Application

    They are made by combining layers of Poly-Crystalline Diamond (Synthetic Diamond) with substrate of carbide at high temperature and pressure.

    ●Geo Exchange / Geothermal
    ●Geo Technical
    ●Water Well
    ●Seismic and Mining
    ●Horizontal Directional Drilling
    ●Frac Plug Drilling
    ●Other Drilling Applications

    Related drill bit



    Company Profile

    Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

    we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.


    FAQ


    Q: Are you manufacturer or trading company?
    A: We are professional manufacturer with 20+ years experience.

    Q: Which kind pf application can be used for PDC bit?
    A: Mining, tunnel, foundation pit, quarry, oil, well, etc.

    Q: Do you have different type for different kind of stone?
    A. Yes, according hardness of stone and stone's feature, we have different type respectively.

    Q:Are you Manufacture or Factory?
    A:Yes we have our own factory.

    Q:What the MOQ?
    A. 1pc.

    Q:How to place an order?
    A. Inform size and model/main usage/quantity

    Q:What is the Payment?
    A. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
    We also can accept L/C AT SIGHT if the quantity is large.
