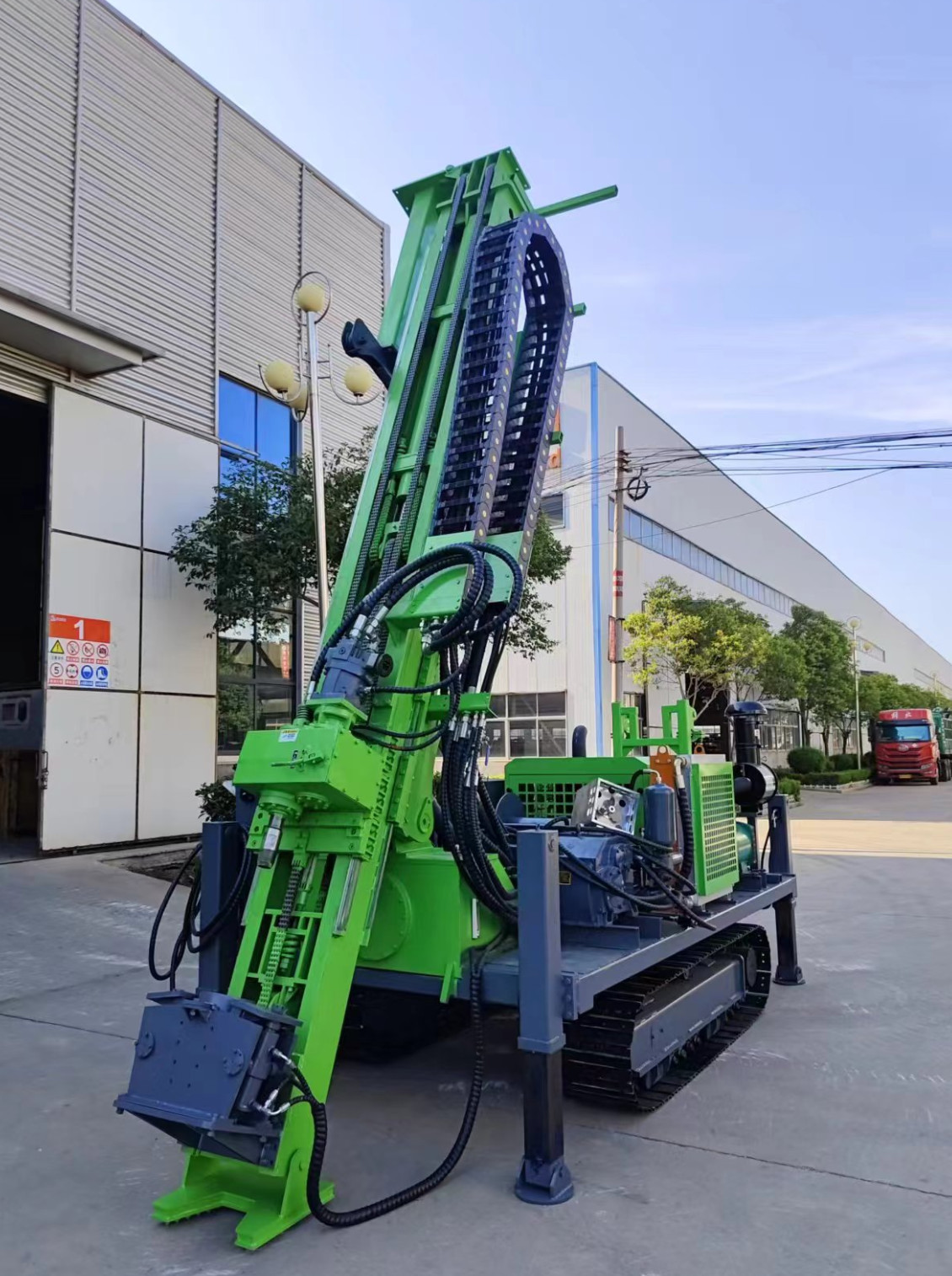

Product Description:
The Exploration Drilling Rig features a drilling angle of 0-90°,
allowing for versatile drilling in various directions. The rig is
designed with a Mast height of 8.5m, providing ample space for
drilling operations, making it ideal for deep exploration tasks.
The Foot Clamp Through-hole 146mm is a unique feature of this rig,
ensuring stable and secure drilling operations. The rig is also
designed with transport dimensions of 5900*2200*3000mm, making it
easy to transport to remote locations.
The high-capacity Exploration Drilling Rig is designed to handle
the most challenging drilling tasks with ease. Its robust design
and powerful mud pump make it an ideal choice for deep exploration
drilling operations. The rig is built with high-quality materials,
ensuring durability and longevity, even in the harshest
environments.
Whether you're searching for oil, gas, or minerals, the Exploration
Drilling Rig is the perfect tool for the job. It's versatile,
reliable, and efficient, making it a valuable asset for any
drilling operation.
In conclusion, the Exploration Drilling Rig is a top-of-the-line
product, designed for deep exploration tasks. Its powerful mud
pump, drilling angle, Foot Clamp Through-hole 146mm, and Mast
height of 8.5m make it an ideal choice for any drilling operation.
If you're looking for a reliable and efficient deep exploration
rig, look no further than our Exploration Drilling Rig.
| Model | GL-600 | GL-800 | GL-1000A | GL-1000B | GL-1600A | GL-1600B |
| Drilling Capacity | BTW (m) BQ | 650 | 1200 | 1400 | 1400 | 1800 | 1800 |
| NTW (m) NQ | 600 | 1000 | 1200 | 1200 | 1600 | 1600 |
| HTW (m) HQ | 300 | 800 | 1000 | 1000 | 1200 | 1200 |
| PQ (m) | | 600 | 800 | 800 | 1000 | 1000 |
| Hydraulic system | Rated pressure MPa | Main pump :95ml/r.32MPa Auxiliary pump: 80ml/r.25MPa | Main pump :95ml/r.32MPa Auxiliary pump: 80ml/r.25MPa | Main pump :115ml/r.32MPa Auxiliary pump: 80ml/r.25MPa | Main pump :115ml/r.32MPa Auxiliary pump: 80ml/r.25MPa | Main pump :145ml/r.32MPa Auxiliary pump: 80ml/r.25MPa | Main pump :145ml/r.32MPa Auxiliary pump: 80ml/r.25MPa |
| Cooling method | Water Cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling |
| Engine parameters | Model | Yuchai 4-Cylinder 92kW | Yuchai 6-Cylinder 92kw | Weichai 6-cylinder 129kw | Weichai 6-cylinder 129kw | Weichai 6-cylinder 147kw | Cummins 6-cylinder 154kw |
| Rated power Kw | 92 | 92 | 129 | 129 | 147 | 154 |
| Rated speed rpm | 2200 | 2200 | 2200 | 2300 | 2300 | 2300 |
| Power head parameters | Maximum torque N.m | 1400 | 1800 | 1800 | 2600 | 3500 | 3500 |
| Maximum speed rpm | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Feed stroke m | 1.8 | 1.8 | 1.8 | 3.5 | 3.5 | 3.5 |
| Lifting force kN | 240 | 300 | 360 | 360 | 400 | 400 |
| Thrust force kN | 120 | 150 | 180 | 180 | 200 | 200 |
| Wireline coring Winch Parameters | Rope capacity m | 800 | 1000 | 1200 | 1200 | 1600 | 1600 |
| Lifting force kN | 15 | 20 | 24 | 24 | 31 | 31 |
| Lifting speed m/min | 110 | 110 | 110 | 110 | 110 | 110 |
| Wire rope diameter mm | 6 | 6 | 8 | 8 | 8 | 8 |
Mast Parameters | Total height/m | 6.1 | 6 | 6.6 | 8.5 | 8.5 | 8.5 |
| Drilling angle° | 45-90 | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
| Sliding stroke mm | 800 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Foot Clamp parameters | BQ/NQ/HQ/PQ | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm | Foot Clamp through-hole 146mm |
Track parameter | Maximum load-bearing capacity t/ Climbing angle ° | 6/20 | 6/20 | 8/20 | 9/20 | 10/20 | 10/20 |
| Maximum driving speed km/h | 2 | 2 | 2 | 2 | 2 | 2 |
| Mud pump | BW100 | BW100 | BW100 | BW160 | BW160 | BW160 |
Transport dimensions | Length*Width*Height:mm | 4500*1900*2300 | 4600*1900*2650 | 5900*2100*2800 | 5900*2200*3000 | 6100*2200*3050 | 6100*2200*3050 |
| Total Weight(t) | 4.6 | 7.5 | 7.8 | 8.8 | 10 | 10 |
Applications:
With a maximum torque of 1800N.m and a sliding stroke of 1200mm,
the GL-1000A is a powerful and efficient drilling rig that can
handle even the toughest drilling challenges. The foot clamp
through-hole of 146mm ensures that the rig can be securely anchored
in place during drilling operations, providing stability and
accuracy in even the most challenging conditions.
This Exploration Drilling Rig is designed to be easy to transport,
with transport dimensions of 5900*2200*3000mm, making it perfect
for use in remote or hard-to-reach locations. The rig also has a
feed stroke of 3.5m, allowing it to easily reach deep drilling
sites.
The GL-1000A has been certified by CE, TUV, and SGS, ensuring that
it meets the highest standards of safety and reliability. The rig
also comes with a minimum order quantity of 1 set, and a price of
44000, making it an affordable and cost-effective option for
exploration teams of all sizes.
When it comes to packaging and delivery, the GL-1000A is designed
to be easy to transport and set up. The rig comes with seaworthy
packing, ensuring that it arrives at its destination in perfect
condition. Delivery time is around 20 days after advance payment,
and payment terms are 30% advance payment by T/T after issuing a
proforma invoice, with the remaining 70% payment due by T/T before
dispatching from the factory.
With a supply ability of 10 sets every month, the GL-1000A is a
reliable and efficient choice for exploration teams who need a
high-capacity exploration rig that can handle even the toughest
drilling challenges.
Packing and Shipping:
Product Packaging:
- All components of the Exploration Drilling Rigs will be securely
packed in sturdy wooden crates.
- The crates will be labeled with the product name, weight, and
dimensions for easy identification.
- The packaging will be designed to withstand shipping and protect
the product from any damage.
Shipping:
- Shipping will be arranged by our team and we will ensure timely
delivery of the product.
- We will work with reputable shipping carriers to ensure the safe
transportation of the product.
- The shipping cost will be included in the purchase price of the
product.
- Customers will be provided with a tracking number so they can
monitor the progress of their shipment.
FAQ:
A: The brand name of the Exploration Drilling Rigs is Glorytek.
Q: What is the model number of the Exploration Drilling Rigs?
A: The model number of the Exploration Drilling Rigs is GL-1000A.
Q: Where is the Exploration Drilling Rigs manufactured?
A: The Exploration Drilling Rigs are manufactured in China.
Q: What certifications do the Exploration Drilling Rigs have?
A: The Exploration Drilling Rigs have CE, TUV, and SGS
certifications.
Q: What is the minimum order quantity for the Exploration Drilling
Rigs?
A: The minimum order quantity for the Exploration Drilling Rigs is
1 set.
Q: What is the price of the Exploration Drilling Rigs?
A: The price of the Exploration Drilling Rigs is $44,000.
Q: How are the Exploration Drilling Rigs packaged?
A: The Exploration Drilling Rigs are packaged in seaworthy packing.
Q: What is the delivery time for the Exploration Drilling Rigs?
A: The delivery time for the Exploration Drilling Rigs is around 20
days after your advance payment.
Q: What are the payment terms for the Exploration Drilling Rigs?
A: The payment terms for the Exploration Drilling Rigs are 30%
advance payment by T/T after issuing proforma invoice, 70%
remaining payment by T/T before dispatching from our factory.
Q: What is the supply ability of the Exploration Drilling Rigs?
A: The supply ability of the Exploration Drilling Rigs is 10 sets
every month.
