GL360SK 6'' Dth Hammer High Air Pressure Hammer For Mining Water Well Drilling

Glorytek Industry (Beijing) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap GL360SK 6'' Dth Hammer High Air Pressure Hammer For Mining Water Well Drilling from wholesalers

    Buy cheap GL360SK 6'' Dth Hammer High Air Pressure Hammer For Mining Water Well Drilling from wholesalers
    • Buy cheap GL360SK 6'' Dth Hammer High Air Pressure Hammer For Mining Water Well Drilling from wholesalers

    GL360SK 6'' Dth Hammer High Air Pressure Hammer For Mining Water Well Drilling

    Ask Lasest Price
    Brand Name : Glorytek
    Model Number : GL360SK 6''
    Certification : CE
    Price : USD1400 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 piece per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    GL360SK 6'' Dth Hammer High Air Pressure Hammer For Mining Water Well Drilling


    DTH Hammers

    Product Description


    A DTH (Down-the-Hole) hammer is a precision-engineered drilling tool that delivers powerful impact force to break rock formations during drilling operations. This hammer, attached to the end of the drill string, uses compressed air to drive a piston, striking the drill bit to create boreholes efficiently. DTH hammers are highly efficient, versatile, and suitable for various drilling applications, including mining, construction, water well drilling, and geotechnical exploration. With robust construction and advanced technology, DTH hammers offer high penetration rates, low maintenance requirements, and reliable performance in challenging geological conditions.


    Item
    GL345A
    GL355K
    GL360K
    GL380K
    Drilling Dia. (ф/mm)
    105-130
    140-152
    165-219
    203-350
    Hammer Length(mm)
    1034
    1098
    1372
    1504
    Outside Dia.(ф/mm)
    98
    124
    152
    180
    Weight(kg)
    39
    70
    92
    230
    Working Pressure(Mpa)
    0.8-2.1
    0.8-2.1
    0.8-2.1
    0.8-2.1
    Air Consumption (M3/Min.)
    3.5-15
    4.5-18
    9-26
    9.6-24.8
    Torque(N.M)
    335
    800
    1150
    1870
    Impact Frequency (Times/Min.)
    ≥800
    840-1500
    950-1650
    1100-1550
    Connection 1
    API 2-3/8
    API 2-3/8
    API 3-1/2
    API 4 1-2
    Connection 2
    Ф64-8
    Ф84-8
    Ф99.5-8
    ф128-10

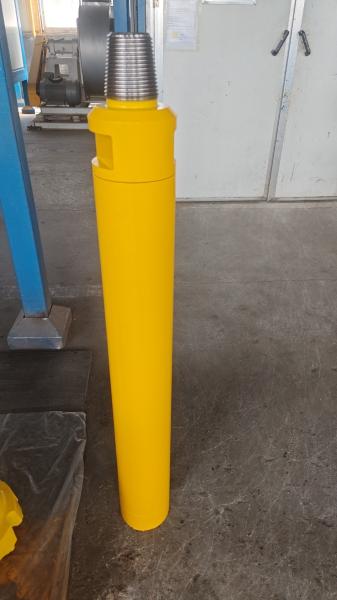

    Product Picture



    Company Profile


    Glorytek Industry (Beijing)Co.,Ltd.,

    located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

    Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting projects ect.



    After-sale Warranty

    (1) Free change once the problem caused by the quality issue.
    (2) Timely after-sale assistance shall be provided all the time.

    FAQ


    Q:Are you Manufacture or Factory?
    A:Yes we have our own factory.

    Q:What the MOQ?
    A:1set.

    Q:How to place an order?
    A:1) Inform size and model/main usage/quantity

    Q:What is the Pament?
    A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
